Shunt Trip and Undervoltage release

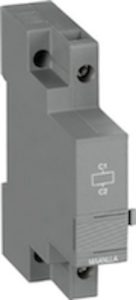

UNDERVOLTAGE TRIP UNIT LAT. LEFT 230Vac FOR Mbs32N

MAANLLA-230

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Click here for download: Dimensioned drawing

Technical Specifications

Type

Shunt trip

Control voltage (V)

200-240 50/60Hz

Rated insulation voltage Ui (V)

690

Rated impulse Withstand Voltage Uimp (kV)

6

Frequency

50/60 Hz

Suitable for

MBS32NG, MBS32NH, MBS63NH

Operation temperature (°C)

-25/+60

Storage temperature

-50/+80 °C

Mounting

left side

Standard connection terminals

-- mm²

Torque

-- Nm

Standard

EN 60947-1/-2/-4-1

Approvals

CE, UL

State

On sale

Brand

AEG
