Shunt Trip and Undervoltage release

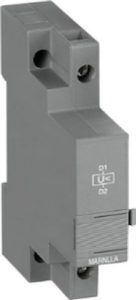

SHUNT TRIP UNIT LAT. LEFT 350-415Vac FOR Mbs32N
MARNLLA-400
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Undervoltage trip
Control voltage (V)
400 50Hz
Rated insulation voltage Ui (V)
690
Rated impulse Withstand Voltage Uimp (kV)
6
Frequency
50 Hz
Suitable for
MBS32NG, MBS32NH, MBS63NH
Operation temperature (°C)
-25/+60
Storage temperature
-50/+80 °C
Mounting
left side
Standard connection terminals
1 or 2 x 1...1,5 mm²
Torque
0,8...1,2 Nm
Standard
EN 60947-1/-2/-4-1
Approvals
CE, UL
State
On sale
Brand
AEG
Megiston
