Shunt Trip and Undervoltage release

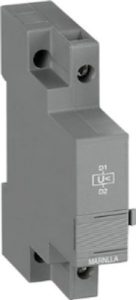

SHUNT TRIP UNIT LAT. LEFT 200-240Vac FOR Mbs32N
MARNLLA-230
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Undervoltage trip
Control voltage (V)
230 (50Hz); 240 (60Hz)
Rated insulation voltage Ui (V)
690
Rated impulse Withstand Voltage Uimp (kV)
6
Frequency
50/60 Hz
Suitable for
MBS32NG, MBS32NH, MBS63NH
Operation temperature (°C)
-25/+60
Storage temperature
-50/+80 °C
Mounting
left side
Standard connection terminals
1 or 2 x 1...1,5 mm²
Torque
0,8...1,2 Nm
Standard
EN 60947-1/-2/-4-1
Approvals
CE, UL
State
On sale
Brand
AEG
Megiston
