Interface switchboards type 21
-

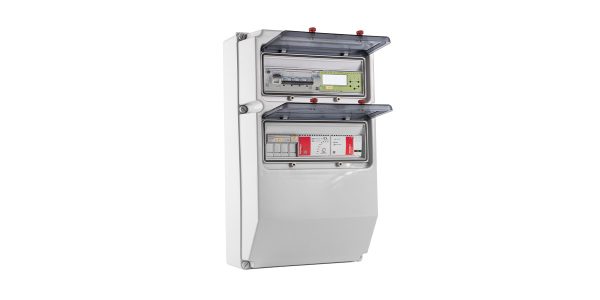

Interface Switchboard CEI0-21 MICRO from 15 to 33kW

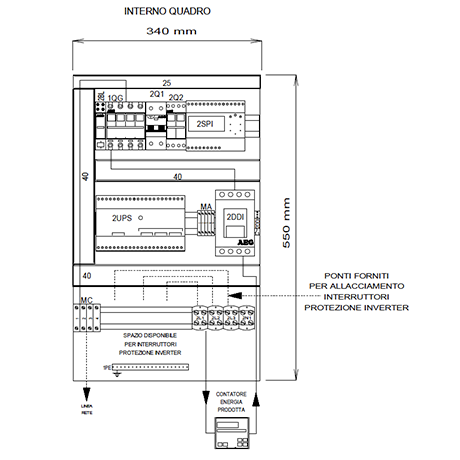

MICRO interface panels have been engineered to take up as little space as possible while ensuring all the essential interface protection functions for photovoltaic systems. They are available in three sizes: 15kW, 20kW, and 33kW, all housed in a single insulating container with an IP67 rating. All panels are equipped with a differential circuit breaker for inverter protection, an emergency UPS, a NA003 interface relay, an AC-3 contactor, and voltage and system-connected indicator lights.
Show details -

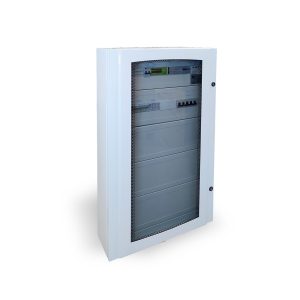

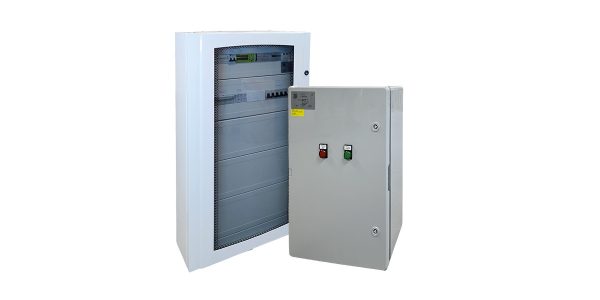

Interface switchboard CEI0-21 OPEN from 20 to 66kW

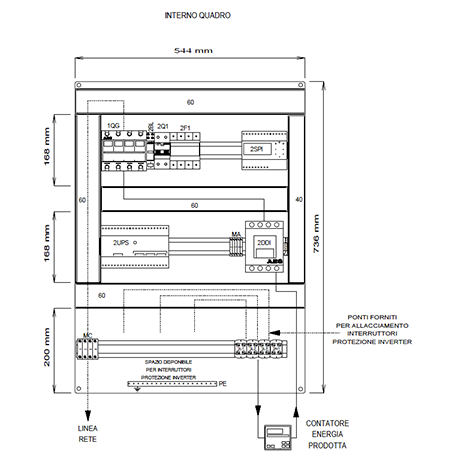

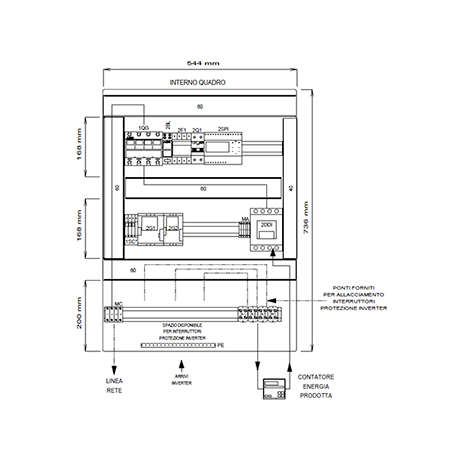

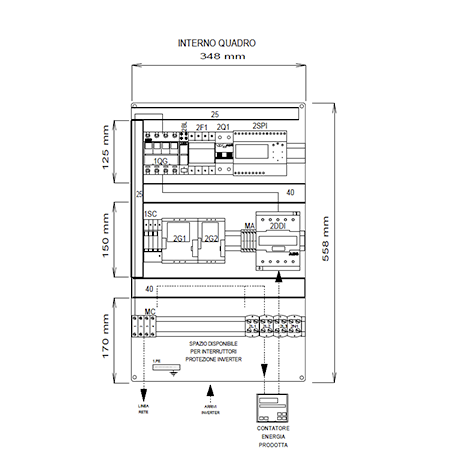

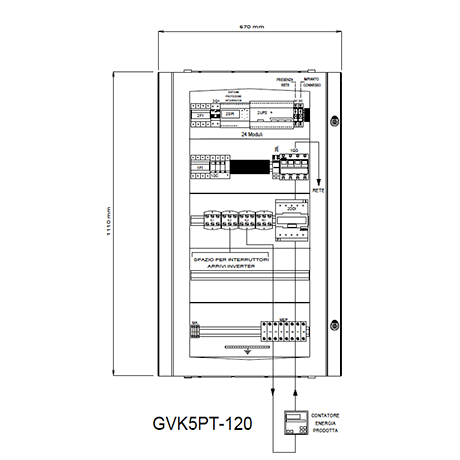

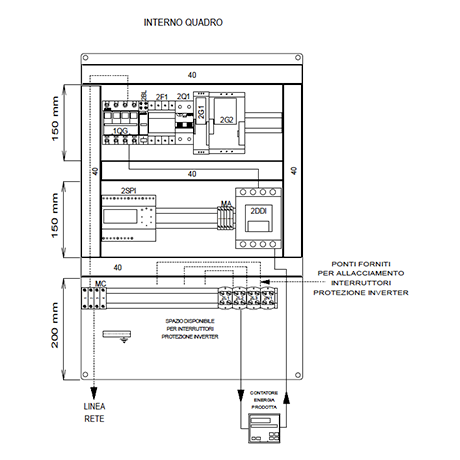

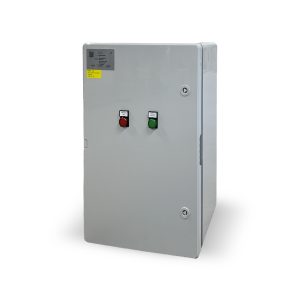

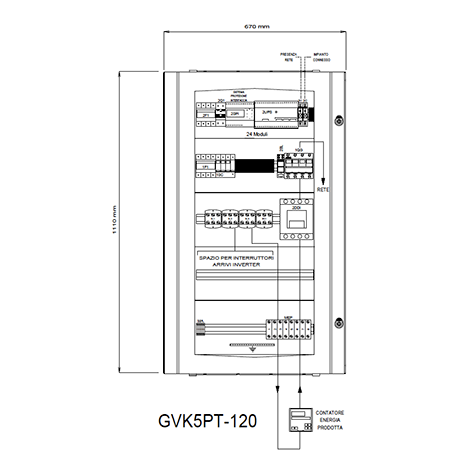

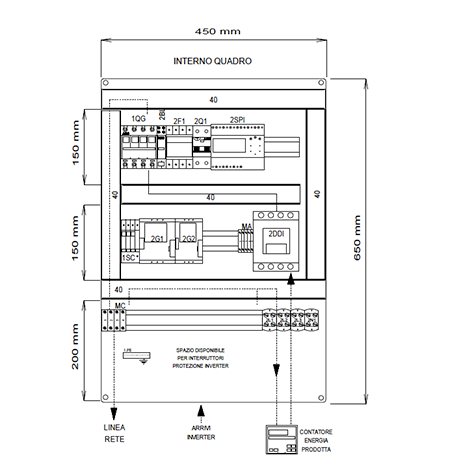

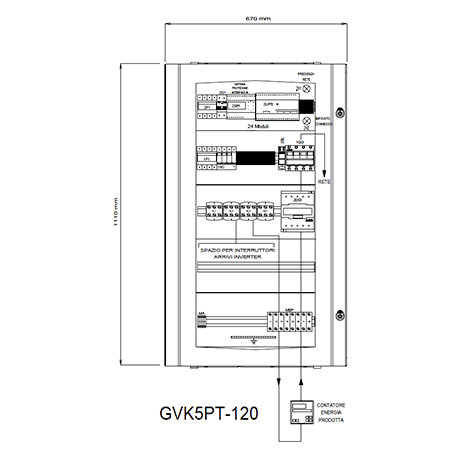

The OPEN series interface panels represent the latest evolution of LV connection panels for CEI 0-21 photovoltaic systems. The OPEN formula allows you to choose the panel size based on the system's power without needing to know the final inverter configuration in advance, which can be completed later on site. The panels are designed with space and wiring pre-arranged for the inverter protection switches, which simply need to be attached and connected using the connection bridges already supplied (see table). This is a significant advantage for industry operators, as the same panel is suitable for numerous system configurations and can therefore be managed more flexibly in stock. The OPEN panels are all equipped with indicators to indicate the presence of the grid and the connected system. They are also available in the OPEN-T version with a bench-mounted relay box test.
Show details -

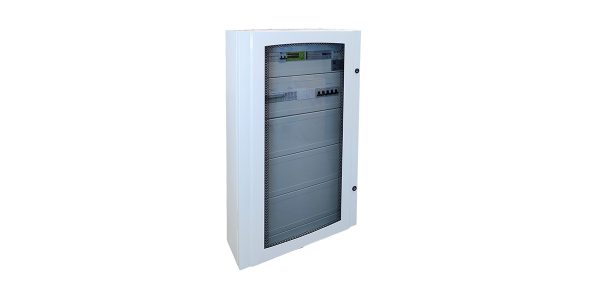

Interface switchboard CEI0-21 COMPACT from 40 to 125kW
Elettra offers the COMPACT line of interface panels for CEI 0-21 systems. The COMPACT panels are characterized by compact dimensions, designed according to the typical power ratings of inverter combinations on the market: 40kW, 50kW, 70kW, and 100kW. They are equipped with a main disconnect switch, Type 2 surge arrester, AC-3 contactor, NA003 interface relay, UPS provision, and inverter protection switches with Class A differential circuit breakers. The enclosures are made of metal with an IP55 or IP65 protection rating.
Show details -
Interface switchboard CEI0-21 SPACE from 50 to 125kW
SPACE interface panels for solutions without compromising on space and size, continuing Elettra's tradition and experience in designing and building complete and durable interface panels. All SPACE versions are complete with a main protection switch and backup release, Type 2 surge arresters, an internal UPS, a NA003 interface relay, voltage presence and system connection indicator lights, an AC-3 contactor, provision for in-out connection to the M2 meter, and a differential circuit breaker for inverter protection. The enclosures are made of metal with a glass door and an IP55 protection rating.
Show details -

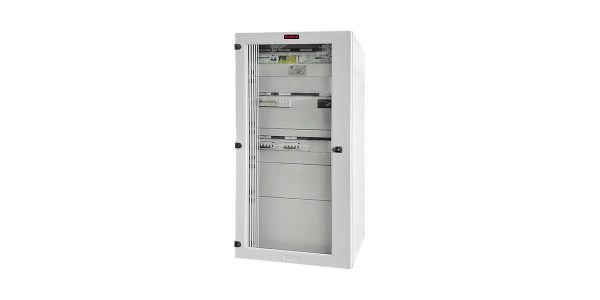

Interface switchboard CEI0-21 SPACECOMBI from 80 to 125 kW
SPACECOMBI panels are structured with a basic interface panel code, to which the inverter protection codes can be added, depending on the system configuration. The panel will be factory-assembled, starting from the basic code, with the various inverter protections already connected. All SPACECOMBI versions are complete with a main protection switch and backup trip, Type 2 surge arresters, an internal UPS, a NA003 interface relay, voltage presence and system connection indicator lights, an AC-3 type contactor, provision for in-out connection to the M2 meter, and differential circuit breakers for inverter protection. The enclosures are made of metal with a glass door and an IP55 protection rating.
Show details -

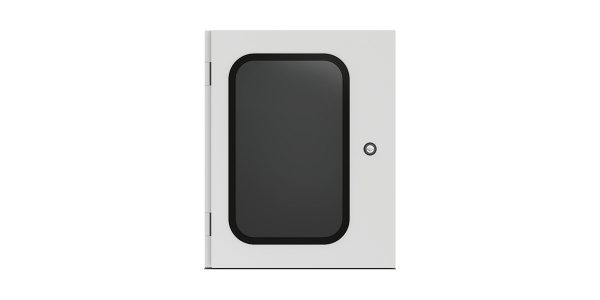

Interface switcboard CEI0-21 AQUA for outdoor from 50 to 125 kW
AQUA interface panels for outdoor installation, with IP66 polyester transparent door enclosures. All AQUA versions are complete with a general protection switch and backup release, Type 2 surge arresters, internal UPS, NA003 interface relay, voltage presence and system connected indicator lights, AC-3 type contactor, provision for in-out connection to the M2 meter, and differential magnetothermal switch for inverter protection.
Show details
