Contacors Serie LSN up to 45kW 3/4 poles

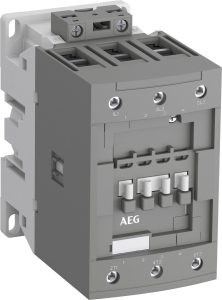

CONTACTOR AEG 37kW 3P NO AUS. 24-60V AC/DC
LS37N3000-ED
CONTATTORI AEG SERIE LSN, VERSIONE 3P, 4P O 2+2P, POTENZE DA 4KW AC-3 FINO A 45KW AC-3, DISPONIBILI SIA CON TENSIONE DI COMANDO IN AC 50/60HZ 24V, 110V, 230V, CHE CON TENSIONE DI COMANDO IN AC/DC 24-60V, 100-250V, 250-500V
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Admissible power AC3 at 400V (kW)
37
Number of Poles
3
Control voltage (V)
24...60V AC/DC
Rated Operational Voltage Ue (V)
1000
Ie current cat. AC3 (A)
80
3 phase Horsepower HP @ 200-208V 60Hz UL508
25
3 phase Horsepower HP @ 220-240V 60Hz UL508
30
3 phase Horsepower HP @ 440-480V 60Hz UL508
60
3 phase Horsepower HP @ 575V 60Hz UL508
75
Single phase Horsepower HP @ 230V 60Hz UL508
15
Ohmic load AC1
125 A
Auxiliary Contacts
NO AUS.
Rated insulation voltage Ui (V)
1000
Power Loss for each pole (W)
7,6
Breaking Capacity
8xIe AC-3 acc. to IEC601947-4-1 kA
Coil Operating Range
20,4...66VAC / 17...66VDC
Coil pick-up power at 50/60Hz or DC
40VA (AC); 40W (DC)
Coil holding power at 50/60Hz or DC
2W
Ith auxiliary contact in the base unit (A)
--
Operation temperature (°C)
-40/+70
Storage temperature
-60/+80 °C
Max backup fuse
160A gG
Connections
screw
Standard connection terminals
1 or 2 x 6...50 mm²
Standard
EN60947-1 / EN60947-4-1
Approvals
UL, CSA
Brand
AEG
