Contacors Serie LSN up to 45kW 3/4 poles

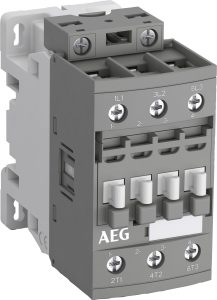

CONTACTOR AEG 18kW 3P NO AUS. 100-250V AC/DC
LS18N3000-EN
CONTATTORI AEG SERIE LSN, VERSIONE 3P, 4P O 2+2P, POTENZE DA 4KW AC-3 FINO A 45KW AC-3, DISPONIBILI SIA CON TENSIONE DI COMANDO IN AC 50/60HZ 24V, 110V, 230V, CHE CON TENSIONE DI COMANDO IN AC/DC 24-60V, 100-250V, 250-500V
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Admissible power AC3 at 400V (kW)
18,5
Number of Poles
3
Control voltage (V)
100...250V AC/DC
Rated Operational Voltage Ue (V)
690
Ie current cat. AC3 (A)
38
3 phase Horsepower HP @ 200-208V 60Hz UL508
10
3 phase Horsepower HP @ 220-240V 60Hz UL508
10
3 phase Horsepower HP @ 440-480V 60Hz UL508
25
3 phase Horsepower HP @ 575V 60Hz UL508
30
Single phase Horsepower HP @ 230V 60Hz UL508
5
Ohmic load AC1
50 A
Auxiliary Contacts
NO AUS.
Rated insulation voltage Ui (V)
690
Power Loss for each pole (W)
2,4
Breaking Capacity
8xIe AC-3 acc. to IEC601947-4-1 kA
Coil Operating Range
85...275V AC/DC
Coil pick-up power at 50/60Hz or DC
50VA (AC); 50W (DC)
Coil holding power at 50/60Hz or DC
2W
Ith auxiliary contact in the base unit (A)
--
Operation temperature (°C)
-40/+70
Storage temperature
-60/+80 °C
Max backup fuse
63A gG
Connections
screw
Standard connection terminals
1 or 2 x 2,5...10 mm²
Standard
EN60947-1 / EN60947-4-1
Approvals
UL, CSA
Brand
AEG
State
On sale
