AC interface panels
-

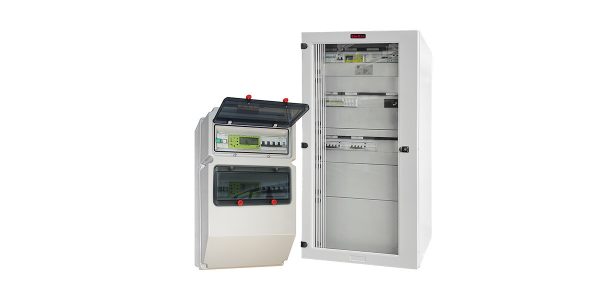

Interface switchboards type 21
Interface panels for photovoltaic systems compliant with the CEI0-21 standard, for power ratings from 15kW to 125kW. ELETTRA interface panels are available in several series depending on system power, installation types, and the need for versatile and configurable solutions. The MICRO series in IP67 enclosures from 15 to 33kW, the OPEN series from 20 to 66kW with inverter protections configurable on site, the COMPACT series for installations with limited space from 40 to 125kW, the SPACE series for solutions without compromising on capacity and space from 50 to 125kW, the SPACECOMBI series for configurable solutions from 80 to 125kW, and the AQUA series for outdoor installations in IP66 polyester from 50 to 125kW.
Show details -

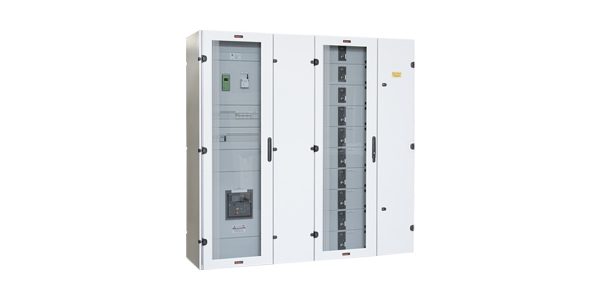

Interface swithboards CEI 0-16
M16 interface panels for medium voltage connected systems. The M16 panel series is available in two versions: up to 200kW with an IDD consisting of an AC-3 contactor, and from 300kW to 1MW with an IDD consisting of a motorized circuit breaker. All M16 versions are equipped with Type 2 surge arresters, an internal or external UPS (in both cases supplied), a BFI016 interface relay, a modem, voltage presence and system connection indicator lights, an IDD, and an inverter protection circuit breaker. Up to 300kW, the I/O connection is provided for connection to an M2 meter. From the 400kW size, space is provided for installing a fiscal meter on the panel, which can be supplied by the customer or chosen as an option from the PROM100W fiscal meter line in the catalog.
Show details
