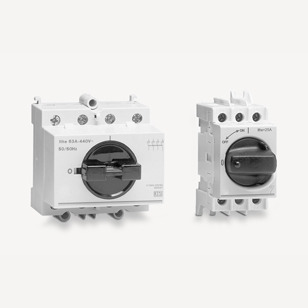

Modular disconnectors HLN00, HLN0 up to 63A

  • General
  • Technical Table

HLN00 - 16A up to 40A
HLN0 - 32A up to 63A


Performance
DIN-rail type
Disconnect function
Complete range of add-on devices
Double knife contacts for HLN0
Number of poles 2P - 3P - 4P
Mounting:
• HLN00 - DIN-rail / panel / wall
• HLN0 - DIN-rail / wall
Box terminals
Padlockable


Standards
IEC 60947-1 and IEC 60947-3, DIN VDE 0660 Teil 107, BS EN 60947-3, CEI 17-11 (Fasc. 1039), EN 60947-3, NBN EN 60947-3, NF C 63-130 Safety disconnector (red/yellow) according to DIN VDE 0113 Teil 1

Rated thermal current 16A-40A 32A-63A
HLN00 16A-40A, HLN0 32A-63A
Rated operational voltage
HLN00: 690V, HLN0: 415V
Peak short withstand circuit current
HLN00: 6kA, HLN0: 10kA
Terminal capacity (Cu)
HLN00: 1.5 - 16 mm2, HLN0:2.5 - 25 mm2
