Watertight enclosures with trasparent door IP65

WATERTIGHT WALL ENCLOSURE SCHALT IP65 2 ROWS 36MOD
GHNE36PT2F
CENTRALINO DA PARETE SCHALT STAGNO IP65 2 FILE 36 MOD, TENSIONE NOMINALE DI IMPIEGO 1000VAC/1500VDC, CLASSE DI ISOLAMENTO II, RESISTENZA AGLI URTI IK08, RESISTENZA AL CALORE CON PROVA DEL FILO INCANDESCENTE FINO A 650° C, STRUTTURA IN ABS PRIVA DI ALOGENI, COLORE GRIGIO RAL7035, GRADO DI AUTOESTINGUENZA UB (UL94), TEMPERATURA DI FUNZIONAMENTO -25/+40°C, MASSIMA POTENZA DISSIPABILE 59,7W, CON PROTEZIONE AI RAGGI UV, NORMA EN62208, EN614391,3 (OVE APPLICABILE)
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Modules Capacity
36
modular rows
2
Rated Operational Voltage Ue (V)
1000 AC / 1500 DC
Protection degree
IP65
Insulation class
II
Impact resistance
IK08
Temperature resistance
650° C glow wire test
Body
ABS halogen free
Colour
RAL 7035
Auto-estinguishing degree
UB (UL94)
Operation temperature (°C)
-25/+40
Maximum heating dissipation (W)
59,7
UV protected
yes
Brand
SCHALT

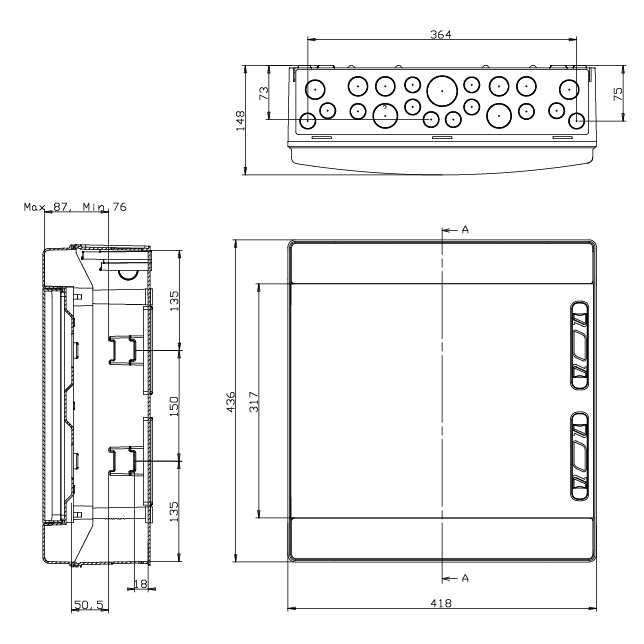

Rated Width
418 mm
Rated Height
436 mm
Rated Depth
148 mm
Standard
EN62208, EN61439-1, 3 (as applicable)
