Thermal overload relays for Power contactors

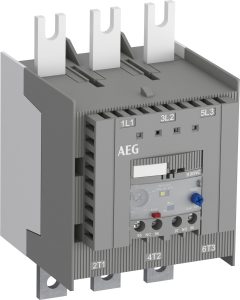

ELECTRONIC THERMAL OVERLOAD RELAY bNE 63-210A

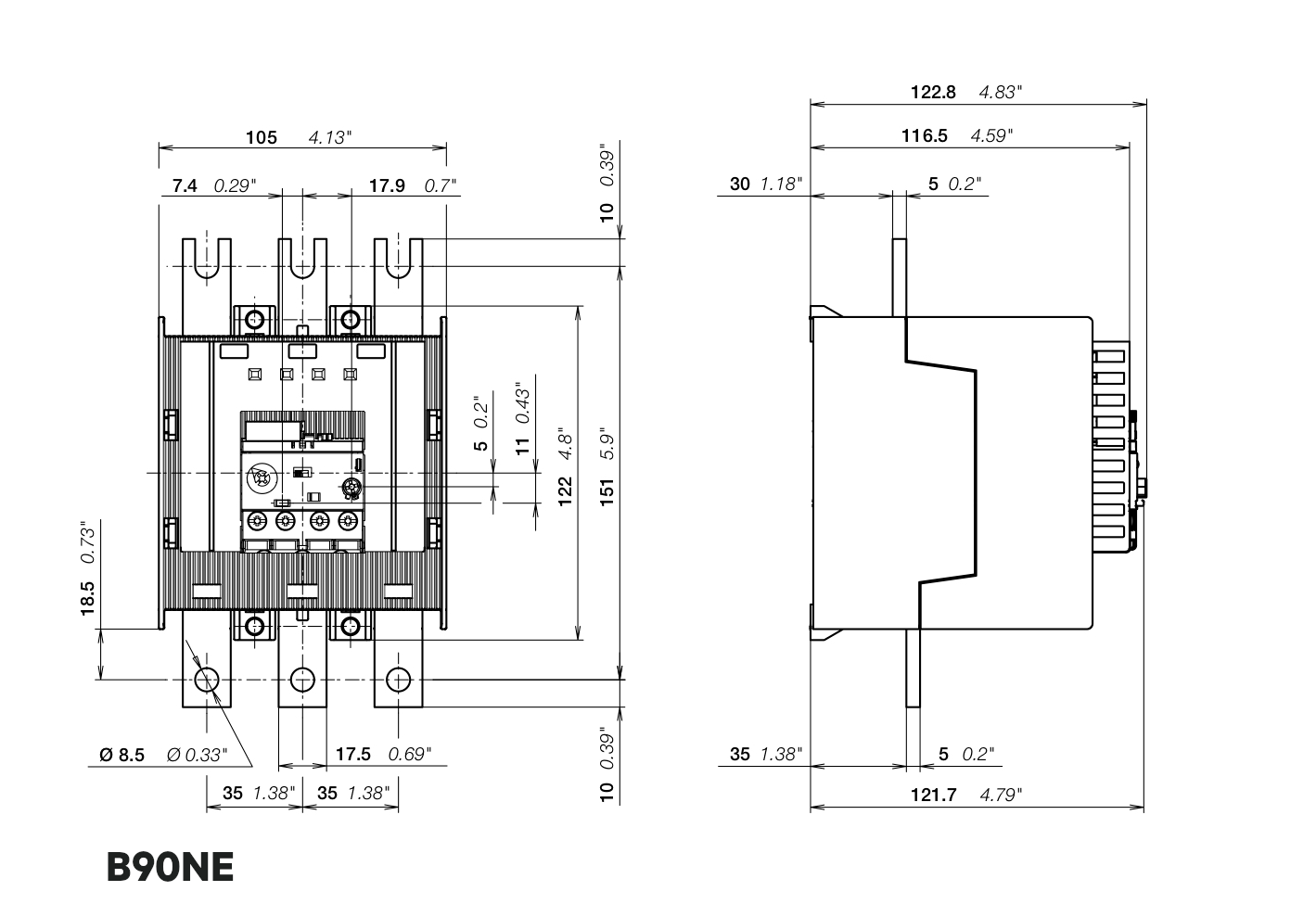

B90NE-210
RELE' TERMICO ELETTRONICO PER MONTAGGIO DIRETTO SU CONTATTORI AEG DA LS90N A LS110N
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Protection
Electronic protection trip class 10E, 20E, 30E
Thermal setting Ir (A)
63...210
Rated Operational Voltage Ue (V)
1000
Rated insulation voltage Ui (V)
1000
tripping class
10E, 20E, 30E selectable
Frequency
50/60 Hz
Mounting
On LS90N, LS110N
Auxiliary Contacts
1NO+1NC
Ith auxiliary contact in the base unit (A)
6
Connections
bar
Standard connection terminals
bar 17,5x5 hole 8,5mm mm²
Torque
18 Nm
Storage temperature
-50...+85°C °C
Operation temperature (°C)
-25...+70
Max backup fuse
1250 gG
Full load amps (FLA)
210A
SCCR at 480VAC Circuit Breaker
100kA - Circuit breaker 400A
SCCR at 600VAC FUSE 5K/RK5
10kA - fuse k5/RK5 400A
SCCR at 600VAC FUSE J
100kA - fuse J 400A
SCCR at 600Vac Circuit Breaker
100kA - Circuit breaker 400A
Power loss
3,6 W
Brand
AEG
Approvals
CE, UL
