Thermal overload relays for Power contactors

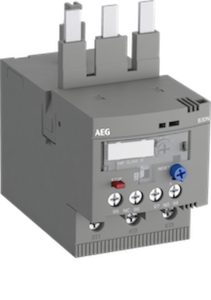

AEG THERMAL OVERLOAD RELAY b18N 84…96A
B45N-96
RELE' TERMICO SERIE B30N PER MONTAGGIO DIRETTO SU CONTATTORI AEG DA LS37N A LS45N
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Protection
Overcurrent and phase failure
Thermal setting Ir (A)
84...96
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
690
tripping class
10
Frequency
50/60 Hz
Mounting
On LS37N...LS45N
Auxiliary Contacts
1NO+1NC
Ith auxiliary contact in the base unit (A)
6 for NC / 4 for NO
Connections
screw
Standard connection terminals
1 or 2 x 0,75...4 mm²
Torque
1,2 Nm
Storage temperature
-50/+80 °C
Operation temperature (°C)
-25/+60
Max backup fuse
200A gG
Full load amps (FLA)
96
SCCR at 600VAC FUSE 5K/RK5
18kA - FUSE K5
SCCR at 600VAC FUSE J
100KA - FUSE J
Brand
AEG
Approvals
UL, CSA
