Thermal overload relays for Power contactors

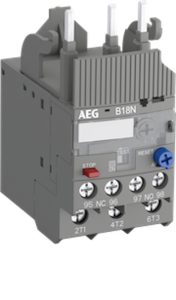

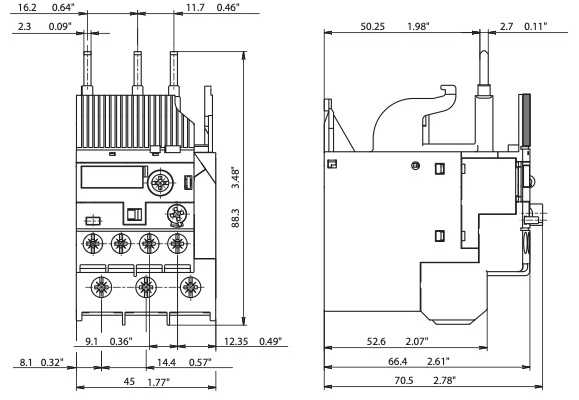

AEG THERMAL OVERLOAD RELAY B18N 29…35A

B18N-35

RELE' TERMICO SERIE B18N PER MONTAGGIO DIRETTO SU CONTATTORI AEG DA LS04N A LS18N

+

Protection

Overcurrent and phase failure

Thermal setting Ir (A)

29...35

Rated Operational Voltage Ue (V)

690 AC

Rated insulation voltage Ui (V)

690

tripping class

10

Frequency

50/60 Hz

Mounting

On LS04N...LS18N

Auxiliary Contacts

1NO+1NC

Ith auxiliary contact in the base unit (A)

6 for NC / 4 for NO

Connections

screw

Standard connection terminals

1 or 2x 1,5...2,5 or 2,5...10 mm²

Torque

1,2 Nm

Storage temperature

-50/+80 °C

Operation temperature (°C)

-25/+60

Max backup fuse

80A gG

Full load amps (FLA)

35

SCCR at 600VAC FUSE 5K/RK5

18kA - FUSE K5

SCCR at 600VAC FUSE J

100KA - FUSE J

Brand

AEG

Approvals

UL, CSA
