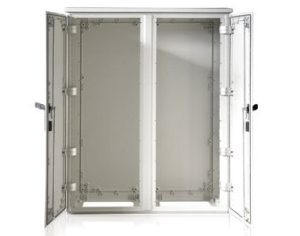

Polyester stradali cabinets IP55
ARM. POLY IP55 LxHxP 1000X1250X420
GL10012542D
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Bottom closed
Width
1000 mm
Height
1250 mm
Depth
420 mm
Insulation class
II
Rated Operational Voltage Ue (V)
1000 AC / 1500 DC
Door
Double plain door
Protection degree
IP55
Colour
RAL 7035
Material
Fiberglass reinforced hot pressed polyester
Impact resistance
IK10
Operation temperature (°C)
-25/+40
Locking
Retractable handle
Mounting
Wall
Rated Width
1000 mm
Rated Height
1253 mm
Rated Depth
432 mm
Standard
EN62208, EN61439-1, 3 (as applicable)
State
On sale
