Mini Contactors type LS05k LS06k

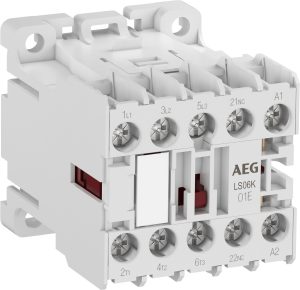

MINICONTACTOR AEG 5,5kW 3P 1NO 110V 50/60Hz
LS06K3010-AJ
MINI CONTATTORI AEG SERIE LS06K POTENZA 5,5KW AC-3, 3P CON CONTATTO AUSILIARIO 1NO O 1NC, TENSIONE DI COMANDO 24VAC, 110VAC, 230VAC
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Admissible power AC3 at 400V (kW)
5,5
Control voltage (V)
110...115 50Hz; 110...120 60Hz
Number of Poles
3
Coil pick-up power at 50/60Hz or DC
26VA (50Hz), 32VA (60Hz)
Coil holding power at 50/60Hz or DC
5,3VA (50Hz), 4,5VA (60Hz)
Connections
screw
Ie current cat. AC3 (A)
12
Ohmic load AC1
20 A
Auxiliary Contacts
1NO
Rated insulation voltage Ui (V)
750
Frequency Range
50/60Hz o DC Hz
Power Loss for each pole (W)
0,4
Ith auxiliary contact in the base unit (A)
10
Operation temperature (°C)
-40/+55
Storage temperature
-55…+80 °C
Approvals
UL, CSA
Brand
AEG
State
On sale
