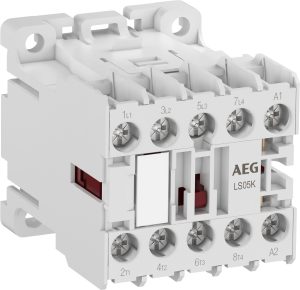

MINICONTACTOR AEG 4kW 4P NO AUS. 24V 50/60Hz

LS05K4000-AD

MINI CONTATTORI AEG SERIE LS05K POTENZA 4KW AC-3, 3P CON CONTATTO AUSILIARIO 1NO O 1NC, OPPURE 4 POLI DI POTENZA, TENSIONE DI COMANDO 24VAC, 110VAC, 230VAC, 24VDC, 110VDC

+

MINICONTACTOR AEG 4kW 4P NO AUS. 24V 50/60Hz

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

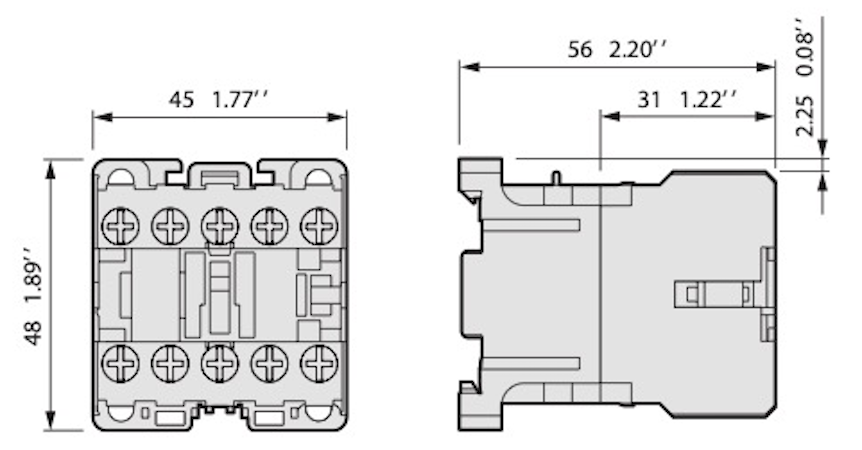

Click here for download: Dimensioned drawing

Dimensioned drawing

Click here for download: Declaration RoHS

Declaration RoHS

Click here for download: Others

Others

Technical Specifications

Admissible power AC3 at 400V (kW)

4

Control voltage (V)

24 50/60Hz

Number of Poles

4

Coil pick-up power at 50/60Hz or DC

26VA (50Hz), 32VA (60Hz)

Coil holding power at 50/60Hz or DC

5,3VA (50Hz), 4,5VA (60Hz)

Connections

screw

Ie current cat. AC3 (A)

9

Ohmic load AC1

20 A

Auxiliary Contacts

NO AUS.

Rated insulation voltage Ui (V)

750

Frequency Range

50/60Hz o DC Hz

Power Loss for each pole (W)

0,4

Ith auxiliary contact in the base unit (A)

10

Operation temperature (°C)

-40/+55

Storage temperature

-55…+80 °C

Approvals

UL, CSA

Brand

AEG

State

On sale
