Manual Motor Starters AEG Mbs32N
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
20 A
Type

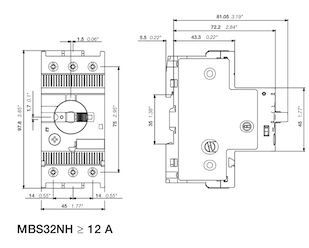

MBS32NH
Rated power 3 phase motor (kW) at 400V
7,5
tripping class
10A
Thermal setting Ir (A)
16...20
Magnetic setting Im
300
Rated insulation voltage Ui (V)
690
Rated Operational Voltage Ue (V)
690VAC / 250VDC
Frequency
50/60 and DC Hz
Rated impulse Withstand Voltage Uimp (kV)
6
Power loss
6,99 W
Ultimate breaking capacity Icu at 230 V AC
100 kA
Ultimate breaking capacity Icu at 400 V AC
100 kA
Ultimate breaking capacity Icu at 440 V AC
20 kA
Ultimate breaking capacity Icu at 500 V AC
20 kA
Ultimate breaking capacity Icu at 690 V AC
3 kA
Ultimate breaking capacity Icu at 250 V DC
_ kA
Rated service short-circuit breaking capacity Ics at 400V
100 kA
isolator application
YES
Mechanical life
100.000 operations
Electrical Life at In
50.000 cycles
Working temperature
-25/+60 °C
Storage temperature
-50/+80 °C
Protection degree
IP20 Housing (IP10 Main terminals)
Standard connection terminals
1...4 mm²
Torque
1,2 Nm
Approvals
CE
Standard
EN60947-2, EN60947-4-1, EN60947-1
Brand
AEG
