Contactors LSN from 160A to 1000A 4 poles

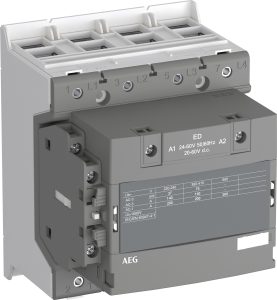

CONTACTOR AEG 4P 160A AC1 55KW AC3 24-60VAC/DC
LS55N4011-ED
CONTATTORE AEG 4 POLI SERIE LSN, CORRENTE NOMINALE AC-1 DA 160A A 1000A, POTENZA AC-3 DA 55KW A 200KW, TENSIONE DI COMANDO CON BOBINA ELETTRONICA 24-60VAC/DC O 100-250VAC/DC, MARCHIO UL
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Admissible power AC3 at 400V (kW)
55
Number of Poles
4
Rated Operational Voltage Ue (V)
690
Ohmic load AC1
160 A
Ie current cat. AC3 (A)
116
Control voltage (V)
24...60V AC/DC
Auxiliary Contacts
1NO+1NC
Rated insulation voltage Ui (V)
1000
Frequency Range
50/60 Hz Hz
Power Loss for each pole (W)
12
Breaking Capacity
8xIe AC-3 acc. to IEC601947-4-1 kA
Coil Operating Range
0,85...1,1 x Uc
Coil pick-up power at 50/60Hz or DC
225 VA
Coil holding power at 50/60Hz or DC
5,5VA
Ith auxiliary contact in the base unit (A)
16
Operation temperature (°C)
-40/+70
Storage temperature
-40/+70 °C
Max backup fuse
200A gG
Connections
cage clamps
Standard connection terminals
70 mm²
Standard
EN60947-1 / EN60947-4-1
Approvals
CE, UL
Brand
AEG
State
On sale
