Contactors LSN from 160A to 1000A 4 poles

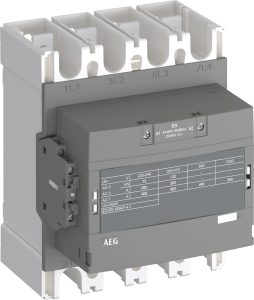

CONTACTOR AEG 4P 400A AC1 132KW AC3 24-60VAC/DC
LS132N4011-ED
CONTATTORE AEG 4 POLI SERIE LSN, CORRENTE NOMINALE AC-1 DA 160A A 1000A, POTENZA AC-3 DA 55KW A 200KW, TENSIONE DI COMANDO CON BOBINA ELETTRONICA 24-60VAC/DC O 100-250VAC/DC, MARCHIO UL
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Admissible power AC3 at 400V (kW)
132
Number of Poles
4
Rated Operational Voltage Ue (V)
1000
Ohmic load AC1
400 A
Ie current cat. AC3 (A)
265
Control voltage (V)
24...60V AC/DC
Auxiliary Contacts
1NO+1NC
Rated insulation voltage Ui (V)
1000
Frequency Range
50/60 Hz Hz
Power Loss for each pole (W)
32
Breaking Capacity
8xIe AC-3 acc. to IEC601947-4-1 kA
Coil Operating Range
0,85...1,1 x Uc
Coil pick-up power at 50/60Hz or DC
475VA
Coil holding power at 50/60Hz or DC
9 VA
Ith auxiliary contact in the base unit (A)
16
Operation temperature (°C)
-40/+70
Storage temperature
-40/+70 °C
Max backup fuse
630A gG
Connections
bar
Standard connection terminals
240 mm²
Standard
EN60947-1 / EN60947-4-1
Approvals
CE, UL
Brand
AEG
State
On sale
