Cabinets complete from 192 to 216 modules

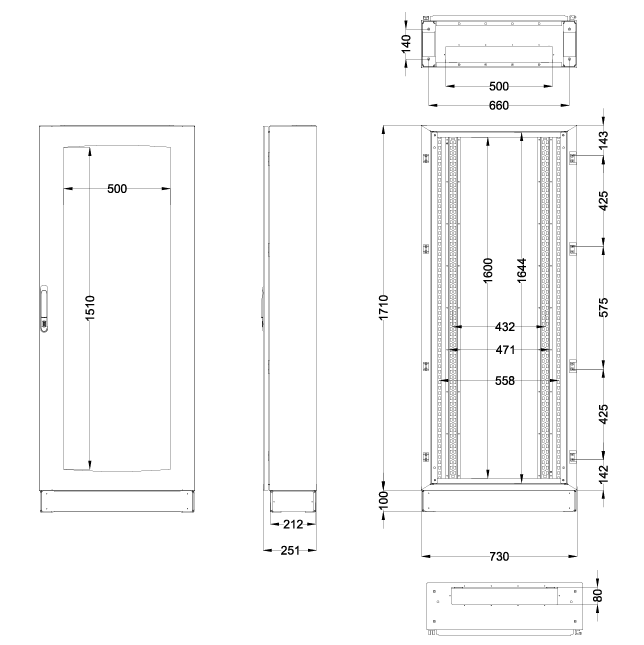

ARM. GVK PLUS IP55 PT LXHXP 730X1810X250
GVK5PT718.25
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Modules Capacity
192
Door
Transparent
Version
With panels
Protection degree
IP55
placing
floor mounting
Rated Width
730 mm
Rated Height
1810 mm
Rated Depth
250 mm
Modules for each row
24
modular rows
8 height 200 mm.
maximum quantity of modules
240
Rated Current (A)
630 A
Rated Operational Voltage Ue (V)
1000
Short time current Icw x 1s (kA)
33
Impact resistance
IK09
Body
metal
Colour
White RAL 9003
Maximum heating dissipation (W)
562,1
Operation temperature (°C)
-25/+40
Standard
EN 61439-1
