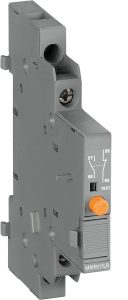

AUX./ALARM CONTACT BLOCK LAT. R 1NO+1NC FOR Mbs32N

MAHN11LR

+

AUX./ALARM CONTACT BLOCK LAT. R 1NO+1NC FOR Mbs32N

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Technical manual

Technical manual

Click here for download: Dimensioned drawing

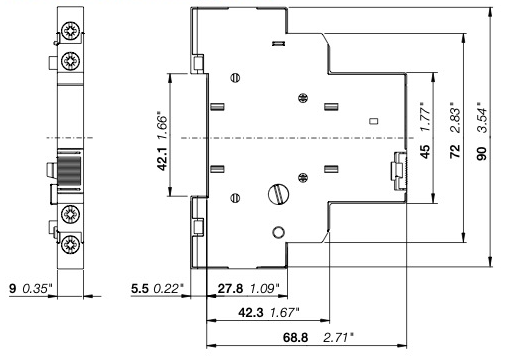

Dimensioned drawing

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Instructions for use

Instructions for use

Technical Specifications

Auxiliary Contacts

1NO+1NC

Suitable for

MBS32NG, MBS32NH, MBS63NH

Rated Voltage AC

690 V

Frequency Range

50/60 Hz Hz

Mounting

right side

Rated current Ie AC-15 at 240V

4 A

Rated current Ie AC-15 at 400V

3 A

Rated current Ie DC-13 at 24V

2 A

Rated current Ie DC-13 at 250V

0,27A

Rated current Ie DC-13 at 440V

0,15A

Switching capacity (opening/closing)

5 mA A

Standard connection terminals

1 or 2 x 1...1,5 mm²

Torque

0,8...1,2 Nm

Approvals

CE, UL

State

On sale

Brand

AEG
