Auxiliary contactors SH05K

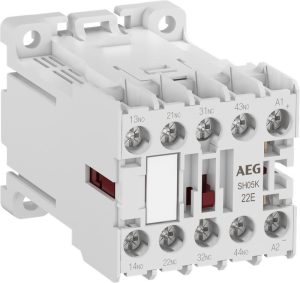

AUXILIARY CONTACTOR AEG 2NO+2NC 24V DC
SH05K22-DD
MINICONTATTORI AUSILIARI AEG SERIE SH05K, CORRENTE TERMICA CONVENZIONALE Ith 10A, CONTATTI 2NO+2NC, 3NO+1NC, 4NO, TENSIONE DI COMANDO 24VAC, 110VAC, 230VAC, 24VDC AMPIO CAMPO, 110VDC AMPIO CAMPO
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Contacts
2NO+2NC
Control voltage (V)
24 DC
Frequency Range
50/60Hz o DC Hz
Rated Operational Voltage Ue (V)
690V AC, 440V DC
Rated insulation voltage Ui (V)
750
Conventional thermal current Ith (A)
10
Coil holding power at 50/60Hz or DC
4W
Coil pick-up power at 50/60Hz or DC
4W
Rated current Ie AC-15 at 240V
6A
Rated current Ie AC-15 at 400V
4A
Rated current Ie AC-15 at 500V
2,5A
Rated current Ie AC-15 at 600V
1,5A
Rated current Ie DC-13 at 24V
5A
Rated current Ie DC-13 at 48V
2,5A
Rated current Ie DC-13 at 125V
0,55A
Rated current Ie DC-13 at 250V
0,3A
Rated current Ie DC-13 at 440V
0,15A
Operation temperature (°C)
-40/+55
Storage temperature
-55/+80 °C
Connections
screw
Standard connection terminals
1 or 2 x 2,5 mm²
Brand
AEG
Approvals
UL, CSA
State
On sale
