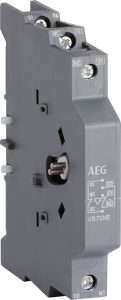

INTERBLOCCO MECCANICO/ELETTRICO PER LS55N-LS75N 3P

VB75NE

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Mounting instruction

Mounting instruction

Technical Specifications

Type

Interlock

Rated Operational Voltage Ue (V)

24...690

Suitable for

LS55N, LS75N 3 POLES

Conventional thermal current Ith (A)

16

Contacts

2NC

Rated current Ie AC-15 at 240V

--

Rated current Ie AC-15 at 400V

--

Rated current Ie DC-13 at 24V

--

Rated current Ie DC-13 at 125V

--

Rated current Ie DC-13 at 250V

--

Standard connection terminals

1 or 2 x 0,75...2,5 mm²

Torque

1,2 Nm

Mechanical life

5 millions operating cycles

Working temperature

-- °C

Adjustment

--

Standard

EN 60947-4-1

Brand

AEG
