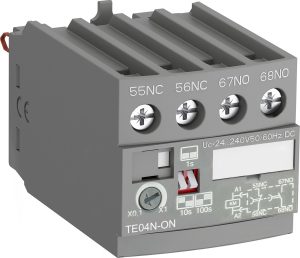

ON-DELAY TIMER 0,1-100s 24-240V AC/DC

TE04N-ON

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Technical Specifications

Type

Electronic timers

Rated Operational Voltage Ue (V)

24...240 AC/DC

Suitable for

LS04N...LS45N

Conventional thermal current Ith (A)

5

Contacts

1NO+1NC

Rated current Ie AC-15 at 240V

1,5

Rated current Ie AC-15 at 400V

--

Rated current Ie DC-13 at 24V

--

Rated current Ie DC-13 at 125V

--

Rated current Ie DC-13 at 250V

--

Standard connection terminals

1x2,5 or 2x1,5 mm²

Torque

1,2 Nm

Mechanical life

5 millions operating cycles

Working temperature

-25...+70°C °C

Adjustment

0,1...100s

Standard

EN 60947-4-1

Brand

AEG
