Accessories for LSN contactors

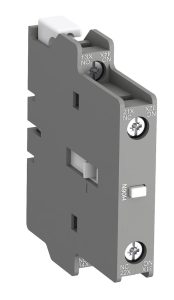

CONTATTI AUSILIARI LATERALI X LS55N-110N/3 1NO+1NC
H06N-L-11
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Auxiliary contacts
Rated Operational Voltage Ue (V)
690
Suitable for
LS55N...LS110N 3 POLI
Conventional thermal current Ith (A)
16
Contacts
1NO+1NC
Rated current Ie AC-15 at 240V
4 A
Rated current Ie AC-15 at 400V
3 A
Rated current Ie DC-13 at 24V
6 A
Rated current Ie DC-13 at 125V
0,55A
Rated current Ie DC-13 at 250V
0,27A
Standard connection terminals
1 or 2x 1...2,5 mm²
Torque
1,2 Nm
Mechanical life
5 millions operating cycles
Working temperature
-- °C
Adjustment
--
Standard
EN 60947-4-1
Brand
AEG
Megiston
