Accessories for LSN contactors

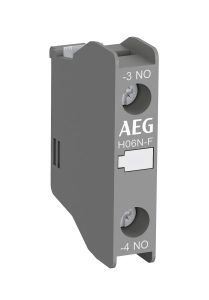

CONTATTO AUSILIARIO FRONTALE PER LS55N/75N 3P 1N0
H06N-F-10
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Auxiliary contacts
Rated Operational Voltage Ue (V)
690
Suitable for
LS55N, LS75N 3 POLES
Conventional thermal current Ith (A)
16
Contacts
1NO
Rated current Ie AC-15 at 240V
4 A
Rated current Ie AC-15 at 400V
3 A
Rated current Ie DC-13 at 24V
6 A
Rated current Ie DC-13 at 125V
0,55A
Rated current Ie DC-13 at 250V
0,27A
Standard connection terminals
1 or 2x 1...2,5 mm²
Torque
1,2 Nm
Mechanical life
3 millions operating cycles
Working temperature
-- °C
Adjustment
--
Standard
EN 60947-4-1
Brand
AEG
Megiston
