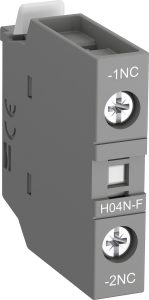

FRONTAL AUX. CONTACT BLOCK 1NC FOR LSN

H04NF01

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Technical manual

Technical manual

Technical Specifications

Type

Auxiliary contacts

Rated Operational Voltage Ue (V)

690

Suitable for

LS04N...LS45N

Conventional thermal current Ith (A)

16

Contacts

1NC

Rated current Ie AC-15 at 240V

4 A

Rated current Ie AC-15 at 400V

3 A

Rated current Ie DC-13 at 24V

6 A

Rated current Ie DC-13 at 125V

0,55A

Rated current Ie DC-13 at 250V

0,27A

Standard connection terminals

1 or 2x 1...2,5 mm²

Torque

1,2 Nm

Mechanical life

10 millions operating cycles

Working temperature

-- °C

Adjustment

--

Standard

EN 60947-4-1

Brand

AEG
