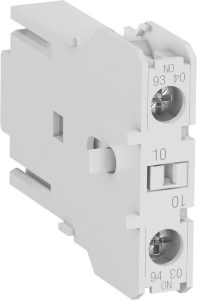

LATERAL AUXILIARY CONTACT 1NO FOR LS05K,LS06K

HS05KL10

BLOCCHETTO DI CONTATTI AUSILIARI LATERALI PER MINICONTATTORI LS05K/LS06K/SH05K 1NO CORRENTE TERMICA 10A TENSIONE NOMINALE FINO A 690V AC

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Declaration RoHS

Declaration RoHS

Click here for download: Others

Others

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Instructions for use

Instructions for use

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Technical manual

Technical manual

Technical Specifications

Type

Auxiliary contacts

Control voltage (V)

--

Auxiliary Contacts

1NO

Rated Voltage AC

690 V

Frequency Range

50/60Hz o DC Hz

Rated current Ie AC-15 at 240V

6A

Rated current Ie AC-15 at 400V

4A

Rated current Ie AC-15 at 500V

2,5A

Rated current Ie DC-13 at 24V

4A

Rated current Ie DC-13 at 48V

2A

Rated current Ie DC-13 at 250V

0,27A

Rated current Ie DC-13 at 440V

0,15A

Switching capacity (opening/closing)

5 mA A

Standard connection terminals

1 or 2 x 0,75...2,5 mm²

Torque

0,8 Nm

Suitable for

LS05K, LS06K, SH05K

Approvals

CE, UL

State

On sale

Brand

AEG
