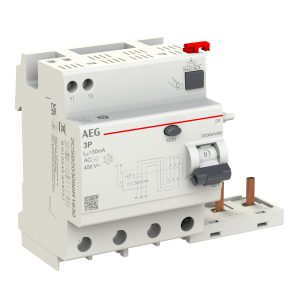

RCD BLOCK AEG DX 3P 63A 30mA Ai 4M
DX363/AI300
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
63 A
Residual current
300 mA
Fault Current Type
Ai high withstand capability
Number of Poles
3
Number of modules
4
Rated Voltage AC
230/400 V
Operating Voltage of circuit TEST (V) AC
195-440
Rated insulation voltage Ui (V)
500
Power loss
7,6 W
Frequency
50 Hz
Working temperature
-25/+55 °C
Storage temperature
-40/+70 °C
Protection degree
IP40 HOUSING (IP20 terminals)
Mechanical life
20.000 operations
Electrical Life (total operations) AC1/AC7a
10000
Standard connection terminals
1...25mm2 mm²
Torque
2,8 Nm
Weight
325g gr
Approvals
CE, IMQ
Current limitation class
3
Standard
EN 61009 / EN 62423
Colour
Grey RAL 7035
Mounting
any
State
On sale
