Thermal overload relays for Power contactors

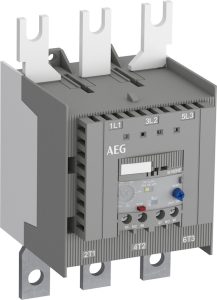

ELECTRONIC THERMAL OVERLOAD RELAY bNE 115-380A
B160NE-380
RELE' TERMICO ELETTRONICO PER MONTAGGIO DIRETTO SU CONTATTORI AEG DA LS132N A LS200N
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Protection
Electronic protection trip class 10E, 20E, 30E
Thermal setting Ir (A)
115...380
Rated Operational Voltage Ue (V)
1000
Rated insulation voltage Ui (V)
1000
tripping class
10E, 20E, 30E selectable
Frequency
50/60 Hz
Mounting
on LS132N, LS160N, LS200N
Auxiliary Contacts
1NO+1NC
Ith auxiliary contact in the base unit (A)
6
Connections
bar
Standard connection terminals
bar 20x5 hole 11mm mm²
Torque
32 Nm
Storage temperature
-50...+85°C °C
Operation temperature (°C)
-25...+70
Max backup fuse
1600 gG
Full load amps (FLA)
380A
SCCR at 480VAC Circuit Breaker
100kA - Circuit breaker 800A
SCCR at 600VAC FUSE 5K/RK5
18kA - fuse K5/RK5 800L/T
SCCR at 600VAC FUSE J
100kA - fuse J 600A
SCCR at 600Vac Circuit Breaker
100kA - Circuit breaker 600A
Power loss
12 W
Brand
AEG
Approvals
CE, UL
