T Series

Home > Electrical Distribution > Control devices > Time Relays > Timer relays type T > MULTIFUNCTIONAL TIMER 24-240Vac/24-48Vdc 1CO

MULTIFUNCTIONAL TIMER 24-240Vac/24-48Vdc 1CO

T-MFE

TEMPORIZATORE MULTIFUNZIONE 24-240VAC/24-48VDC 1CO, 7 MODALITA' DI REGOLAZIONE: RITARDO ALL'ECCITAZIONE, RITARDO ALLA DISECCITAZIONE CON COMANDO, IMPULSO ALL'ECCITAZIONE, IMPULSO ALLA DISECCITAZIONE, CICLO SIMMETRICO ON INIZIALE, CICLO SIMMETRICO OFF INIZIALE, GENERATORE DI IMPULSI, TEMPORIZZAZIONE 0,05s...100h.

+

MULTIFUNCTIONAL TIMER 24-240Vac/24-48Vdc 1CO

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

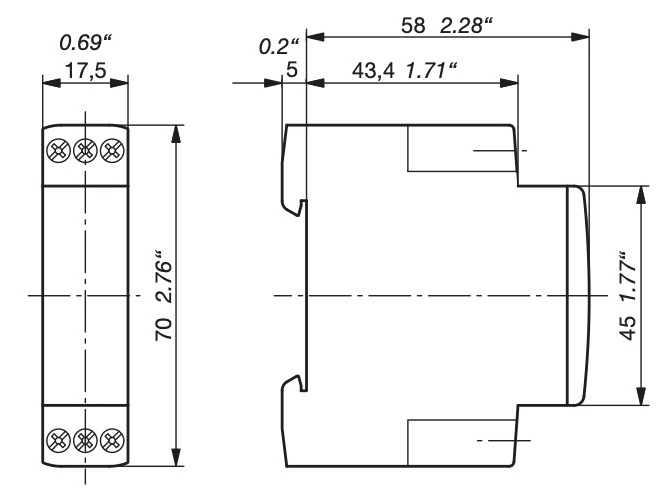

Click here for download: Dimensioned drawing

Dimensioned drawing

Click here for download: Technical manual

Technical manual

Click here for download: Deeplink REACH

Deeplink REACH

Technical Specifications

Type

Multifunction

Control voltage (V)

24-240 AC / 24-48 DC

Frequency

50/60 and DC Hz

Adjustment

7 range from 0,05s to 100h

Consumption

35VA max.

Rated Operational Voltage Ue (V)

250

Rated current Ie AC-15 at 240V

3A

Rated current Ie DC-13 at 24V

2 A

Contacts

1CO

Mechanical life

30 milion operations

Electrical Life at In

100.000 operations

Working temperature

-20/+60 °C

Storage temperature

-40/+85 °C

Standard

EN 61812.1

Approvals

CE, EMC, RoHS

State

On sale

Brand

AEG
