Surface distribution enclosures IP67

CASSETTA PARETE STAGNA IP67 12 MODULI

GHG12

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Technical Specifications

Modules Capacity

12+1

modular rows

1

Rated Operational Voltage Ue (V)

Up to 1000V AC / 1500V DC

Protection degree

IP67

Insulation class

II

Impact resistance

IK08

Temperature resistance

650° C glow wire test

Colour

RAL 7035

Operation temperature (°C)

-25/+40

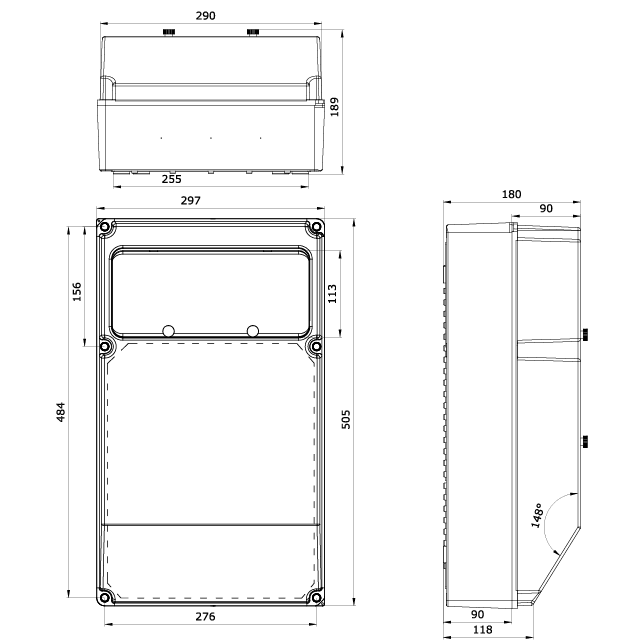

Rated Width

297 mm

Rated Height

505 mm

Rated Depth

180 mm

Standard

EN 61439-1
