Surface distribution enclosures IP65 for sockets
WATERTIGHT BOX FOR SOCKETS IP65 T.DOOR 24 MOD
GHSP24PT
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
With knock out lids
Modules Capacity
24
modular rows
2
Knock out lids
6
Rated Operational Voltage Ue (V)
1000 AC / 1500 DC
Protection degree
IP65
Insulation class
II
Impact resistance
IK08
Temperature resistance
650° C glow wire test
Body
ABS halogen free
Colour
RAL 7035
Auto-estinguishing degree
UB (UL94)
Operation temperature (°C)
-25/+40
Maximum heating dissipation (W)
65
UV protected
yes
Brand
SCHALT

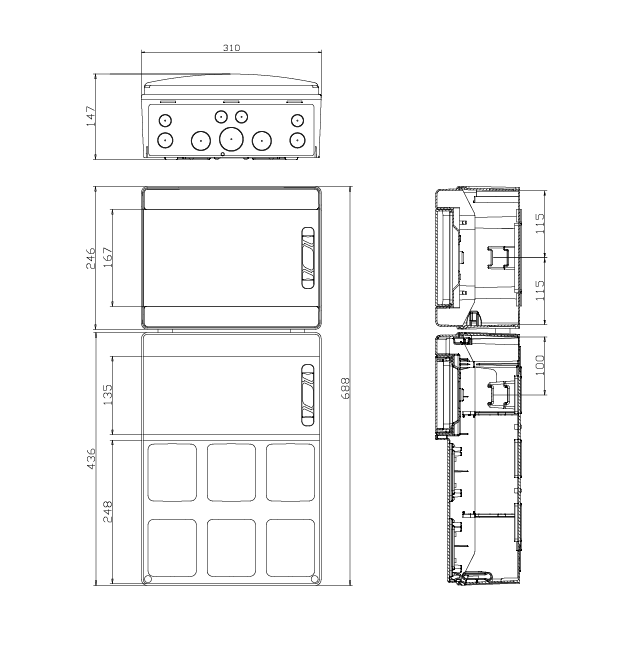

Rated Width
310 mm
Rated Height
688 mm
Rated Depth
147 mm
