Surface and flush fit small distribution enclosures IP40 with door
FLUSH FIT DISTR. BOX BRICK W. P.DOOR IP40 36 MOD.
SGS36IC
CENTRALINO DA INCASSO A MURO SCHALT IP40 3 FILE 36 MODULI, PORTA CIECA, TENSIONE NOMINALE DI IMPIEGO 1000VAC/1500VDC, CLASSE DI ISOLAMENTO II, RESISTENZA AGLI URTI IK08, RESISTENZA AL CALORE CON PROVA DEL FILO INCANDESCENTE FINO A 650° C, STRUTTURA IN ABS PRIVA DI ALOGENI, COLORE BIANCO RAL9003, TEMPERATURA DI FUNZIONAMENTO -25/+40°C, MASSIMA POTENZA DISSIPABILE 24,5W, NORMA EN62208
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Flush Mounting distribution box
Modules Capacity
36
Door
Plain
placing
To wall
Number of rows
3
Protection degree
IP40
Material
ABS alogen free
Insulation class
II
Impact resistance
IK08
Temperature resistance
650° C glow wire test
Rated Operational Voltage Ue (V)
Up to 1000V AC / 1500V DC

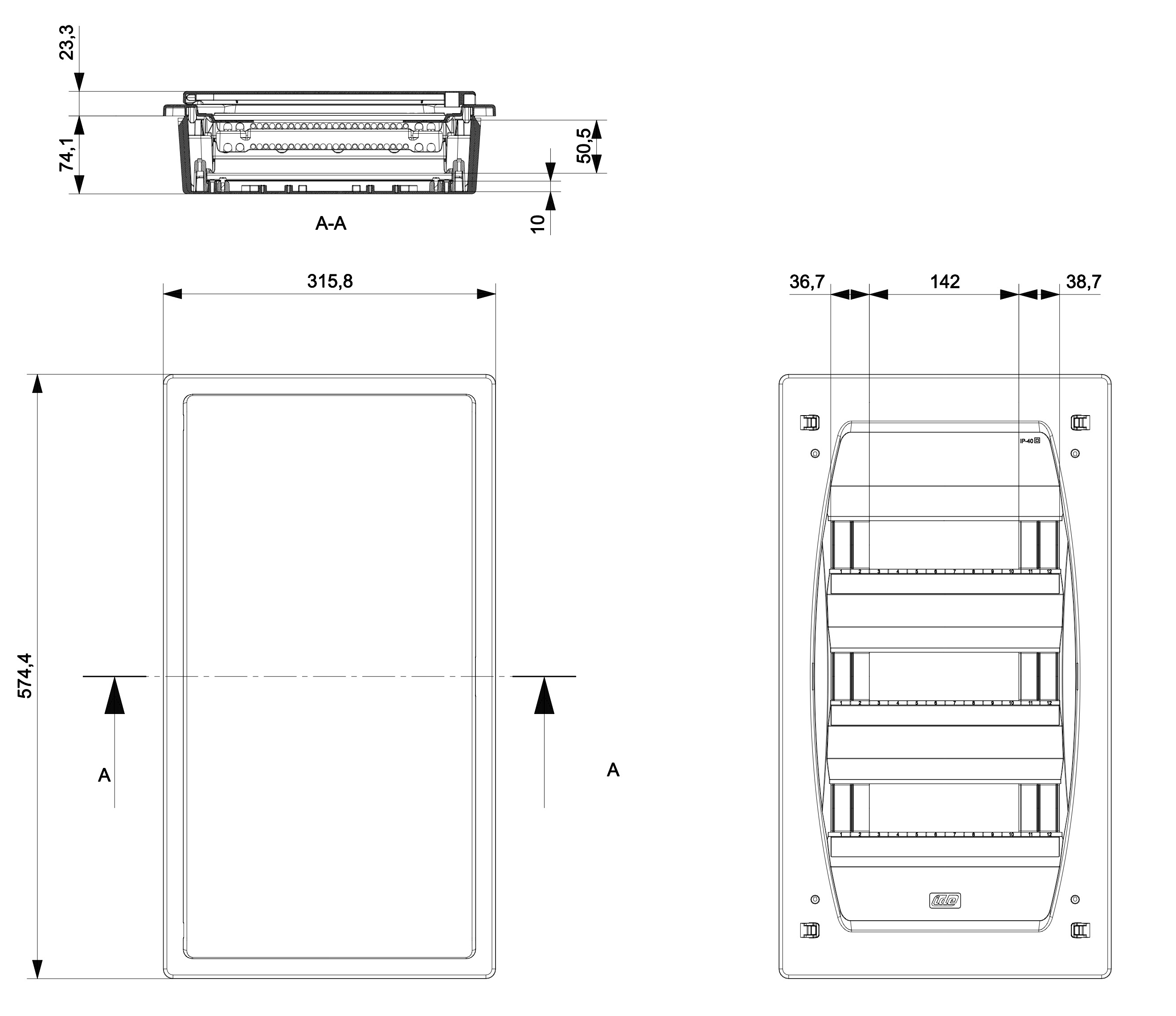

Rated Width
316 mm
Rated Height
574 mm
Rated Depth
97 mm
Maximum heating dissipation (W)
46,4
Working temperature
-25/+40 °C
Colour
White RAL 9003
Connections
Optional neutral and earth bar structure
Approvals
CE
Standard
EN 62208
Brand
SCHALT
