Surface and flush fit small distribution enclosures IP40 with door
CENTRALINO DA PARETE SCHALT 8 MODULI
SGH-P08
CENTRALINO DA PARETE SCHALT IP40 1 FILA 8 MODULI, PORTA TRASPARENTE, TENSIONE NOMINALE DI IMPIEGO 1000VAC/1500VDC, CLASSE DI ISOLAMENTO II, RESISTENZA AGLI URTI IK08, RESISTENZA AL CALORE CON PROVA DEL FILO INCANDESCENTE FINO A 650° C, STRUTTURA IN ABS PRIVA DI ALOGENI, COLORE BIANCO RAL9003, TEMPERATURA DI FUNZIONAMENTO -25/+40°C, MASSIMA POTENZA DISSIPABILE 10,3W, NORMA EN62208
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Wall Mounting distribution box
Modules Capacity
8
Door
Transparent
placing
To wall
Number of rows
1
Protection degree
IP40
Material
ABS alogen free
Insulation class
II
Impact resistance
IK08
Temperature resistance
650° C glow wire test
Rated Operational Voltage Ue (V)
Up to 1000V AC / 1500V DC

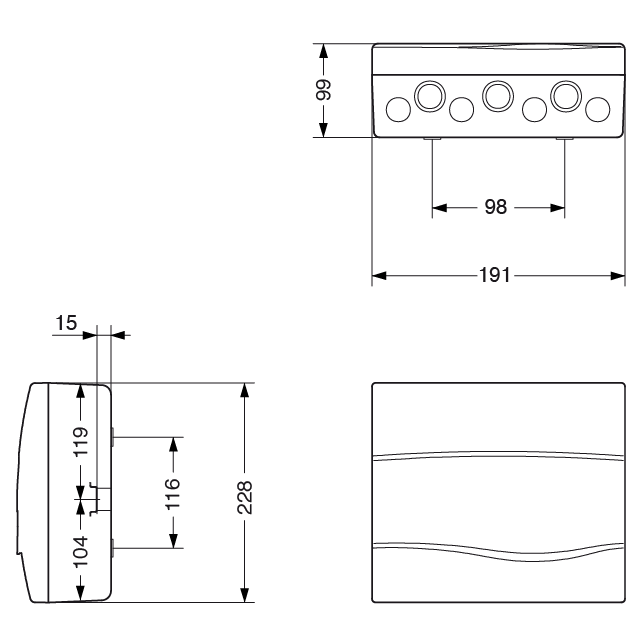

Rated Width
191 mm
Rated Height
228 mm
Rated Depth
99 mm
Maximum heating dissipation (W)
10,3
Working temperature
-25/+40 °C
Colour
White RAL 9003
Connections
Optional neutral and earth bar structure
Approvals
CE
Standard
EN 61439-1
