String Box DC with fuses
WIRED 1 STRING BOX 600V DC
PV-QST1-600
Quadro cablato di protezione stringhe per impianto fotovoltaico. 1 stringa fino a 600Vdc con protezione fusibile GPV 16A in ingresso, base portafusibile 10,3x38 1000Vdc, scaricatore di sovratensione tipo 2 a 3 cartucce 600Vdc Isn 20kA, interruttore non automatico-sezionatore 2x20A, contenitore in ABS con porta trasparente 12 moduli IP65
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Number of inputs
1
Fuse size input
16 A
Max. input voltage DC
600 V
String protection
2-pole
Fuse type
gPV (photovoltaic protection)
For fuse size
10x38 mm
Outgoings
1
Max. output current
25 A
Isolator application according to EN 60947-3
YES

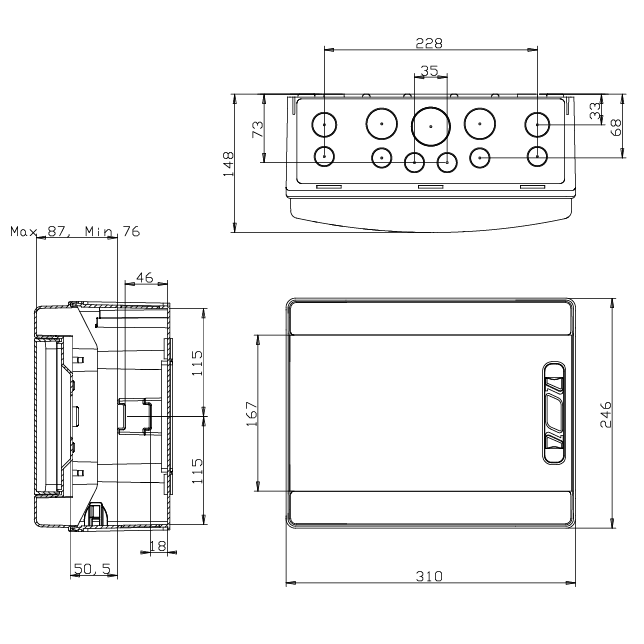

Width
310 mm
Height
246 mm
Depth
148 mm
Material
Plastic
Protection degree
IP65
Impact resistance
IK08
Equipped with switch disconnector
True
Brand
ELETTRA
