String Box DC with fuses
WIRED 4 PARALLEL STRINGS BOX 2IN - 2OUT 1000V DC
PV-QST42-1000
Quadro cablato di protezione stringhe per impianto fotovoltaico. 4 stringhe in ingresso e 2 in uscita fino a 1000Vdc con protezione fusibile GPV 16A in ingresso, 4 basi portafusibili 10,3x38 1000Vdc, 2 scaricatori di sovratensione tipo 2 a 3 cartucce 1000Vdc Isn 20kA, 2 interruttori non automatico-sezionatore 2x40A, contenitore in ABS con porta trasparente 24 moduli IP65
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Number of inputs
4
Fuse size input
16 A
Max. input voltage DC
1000 V
String protection
2-pole
Fuse type
gPV (photovoltaic protection)
For fuse size
10x38 mm
Outgoings
2
Max. output current
40 A
Isolator application according to EN 60947-3
YES

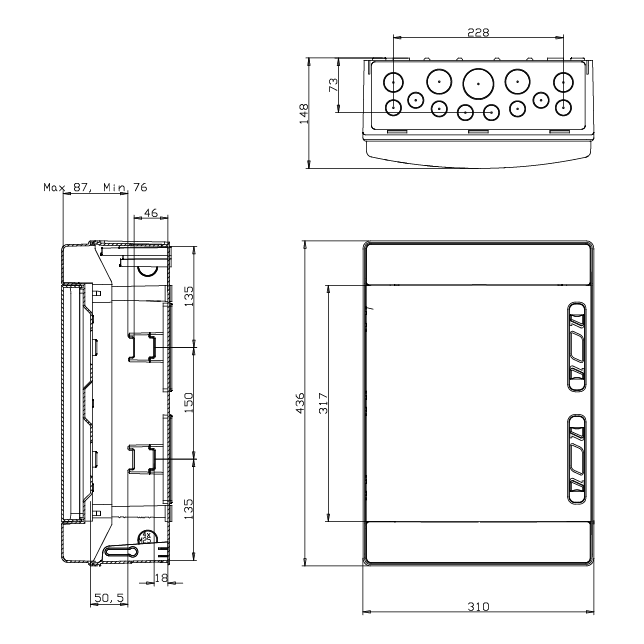

Width
310 mm
Height
436 mm
Depth
148 mm
Material
Plastic
Protection degree
IP65
Impact resistance
IK08
Equipped with switch disconnector
True
Brand
ELETTRA
