String Box DC with breaker
QUADRO 4 STRINGHE PAR. MT+SPD 880/100VDC IP65 18M
PV-QMT41
Quadro cablato di protezione stringa per impianto fotovoltaico. 4 stringhe parallele fino a 880Vdc con protezione tramite interruttore automatico in ingresso, scaricatore di sovratensione tipo 2 a 3 cartucce 1000Vdc Isn 20kA, 4 basi portafusibili e contenitore in ABS con porta trasparente 18 moduli IP65. Interruttore: AEG E94SUCB63 curva B 63A
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Number of inputs
4
Fuse size input
63 A
Max. input voltage DC
880 V
String protection
2-pole
Outgoings
1
Max. output current
63 A
Isolator application according to EN 60947-3
YES

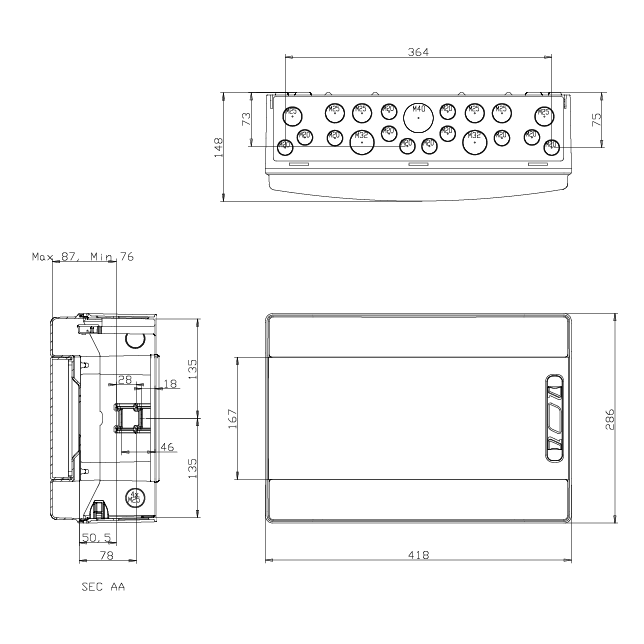

Width
418 mm
Height
286 mm
Depth
148 mm
Material
Plastic
Protection degree
IP65
Impact resistance
IK08
Equipped with switch disconnector
True
Brand
ELETTRA
