String Box DC with breaker
QUADRO 1 STRINGA MT+SPD 880/1000VDC IP65 8M
PV-QMT1
Quadro cablato di protezione stringa per impianto fotovoltaico. 1 stringa fino a 880Vdc con protezione tramite interruttore automatico in ingresso, scaricatore di sovratensione tipo 2 a 3 cartucce 1000Vdc Isn 20kA, contenitore in ABS con porta trasparente 8 moduli IP65. Interruttore: AEG E94SUCB16 curva B 16A
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Number of inputs
1
Fuse size input
16 A
Max. input voltage DC
880 V
String protection
2-pole
Outgoings
1
Max. output current
16 A
Isolator application according to EN 60947-3
YES

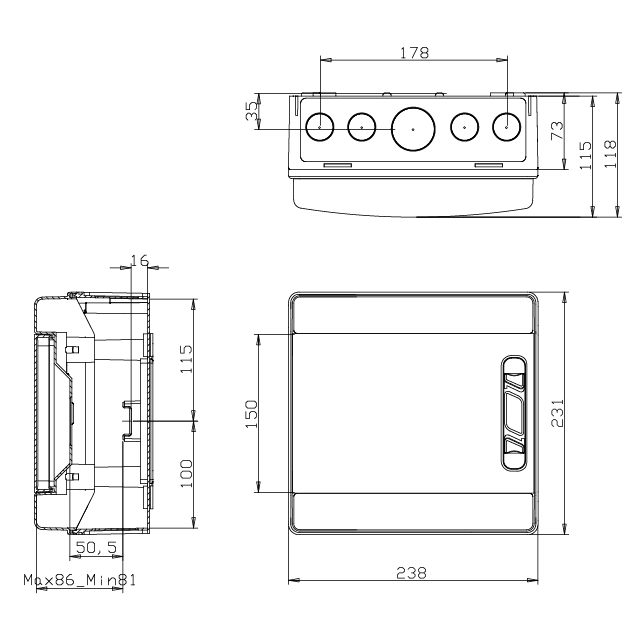

Width
238 mm
Height
231 mm
Depth
118 mm
Material
Plastic
Protection degree
IP65
Impact resistance
IK08
Equipped with switch disconnector
True
Brand
ELETTRA
Megiston
