String Box DC with breaker and emergency release
QE 3 STRINGHE SING. MT+SPD BOBINA 880/1000VDC IP65
PV-QMT3S-A
Quadro cablato di protezione stringa per impianto fotovoltaico. 3 stringhe singole fino a 880Vdc protezione con 3 interruttori automatici con bobina a lancio di corrente 110...415Vac/110...125Vdc in ingresso, 3 scaricatori di sovratensione tipo 2 a 3 cartucce 1000Vdc Isn 20kA e contenitore in ABS con porta trasparente 36 moduli IP65. Interruttore: AEG E94SUCB16 curva B 16A (x3)
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Number of inputs
3
Fuse size input
16 A
Max. input voltage DC
880 V
String protection
2-pole
Outgoings
3
Max. output current
16 A
Isolator application according to EN 60947-3
YES

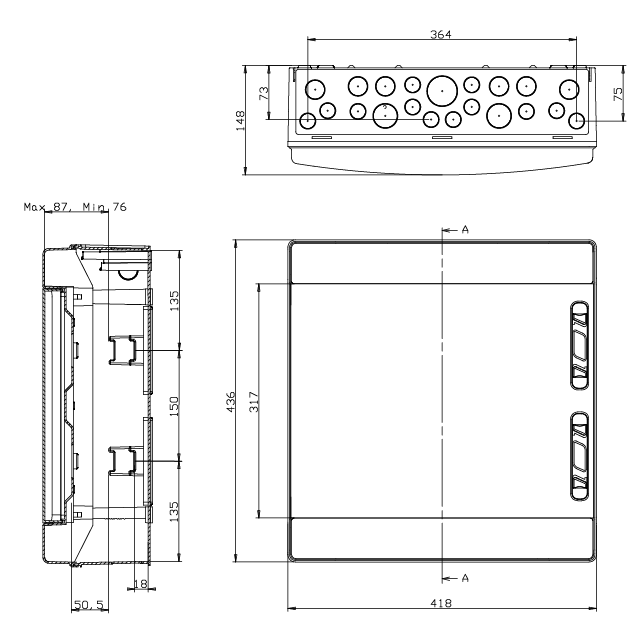

Width
418 mm
Height
436 mm
Depth
148 mm
Material
Plastic
Protection degree
IP65
Impact resistance
IK08
Equipped with switch disconnector
True
Brand
ELETTRA
