SHUNT TRIP 12-110VAC/DC ELFANEXT

ETL-1

SGANCIATORE A LANCIO DI CORRENTE PER INTERRUTTORI AEG SERIE ELFA NEXT, TENSIONE DI COMANDO 12-110VAC/DC

+

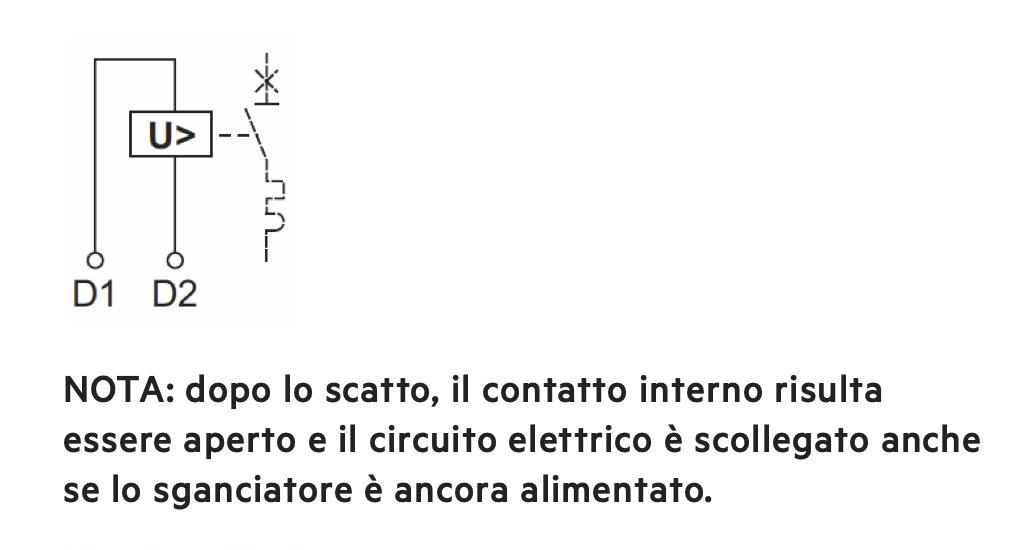

SHUNT TRIP 12-110VAC/DC ELFANEXT

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Dimensioned drawing

Dimensioned drawing

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Product picture view from the left side

Product picture view from the left side

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Declaration EPD (Environmental Product Declaration)

Declaration EPD (Environmental Product Declaration)

Click here for download: Product picture view from the right side

Product picture view from the right side

Click here for download: Declaration RoHS

Declaration RoHS

Click here for download: Technical manual

Technical manual

Technical Specifications

Type

Shunt trip

Control voltage (V)

12...110VAC/DC

Coil Operating Range

MINIMUM 8,4VAC / 10VDC

Response time tA

10ms

delay

--

Number of modules

1

Consumption at 12V

2,8A DC / 3,3A AC

Consumption at 24V

5,3A DC / 6,2A AC

Consumption at 48V

--

Consumption at 110V

25A DC / 25A AC

Consumption at 230V

--

Standard connection terminals

2,5 mm²

Torque

0,8 Nm

State

On sale

Brand

AEG
