SHUNT TRIP 110-415VAC 110-250VDC E.NEXT

ETL-2

SGANCIATORE A LANCIO DI CORRENTE PER INTERRUTTORI AEG SERIE ELFA NEXT, TENSIONE DI COMANDO 110-415VAC 110-250VDC

+

SHUNT TRIP 110-415VAC 110-250VDC E.NEXT

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Declaration RoHS

Declaration RoHS

Click here for download: Product picture view from the right side

Product picture view from the right side

Click here for download: Declaration EPD (Environmental Product Declaration)

Declaration EPD (Environmental Product Declaration)

Click here for download: Mounting instruction

Mounting instruction

Click here for download: Product picture view from the left side

Product picture view from the left side

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Dimensioned drawing

Dimensioned drawing

Click here for download: Technical manual

Technical manual

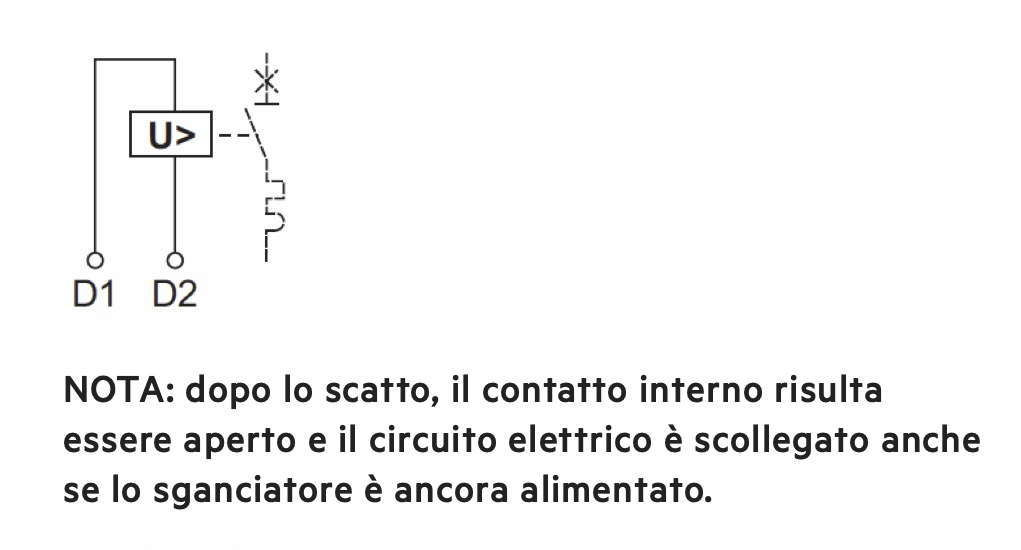

Technical Specifications

Type

Shunt trip

Control voltage (V)

110...415VAC / 110...250VDC

Coil Operating Range

MINIMUM 77V AC/DC

Response time tA

10ms

delay

--

Number of modules

1

Consumption at 12V

--

Consumption at 24V

--

Consumption at 48V

--

Consumption at 110V

0,5A DC / 0,7A AC

Consumption at 230V

1,1A DC / 1,5A AC

Standard connection terminals

2,5 mm²

Torque

0,8 Nm

State

On sale

Brand

AEG
