Modular disconnectors SZD up to 200A
SEZIONATORE SCHALT SZD1 4P 100A
SZD14100
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Modular switch
Rated Current (A)
100 A
Number of Poles
3+N
Number of modules
4
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
800
Rated impulse Withstand Voltage Uimp (kV)
8
Rated Current in category AC-21A (A) at 400/500/690V
100/100/100
Rated current in category AC-22A (A) at 400/500/690V
100/100/100
Rated current in category AC-23A (A) at 400/500/690V
100/63/32
Rated power in AC23 (kW) at 415/500/690V
46/35/48
Rated closing/breaking current at 400V AC23 (A)
1000/800
Short time current Icw x 1s (kA)
1,5
Rated fuse short circuit current (kA)
30 (fusibile gG 100A)
Power loss
6 W
Mechanical life
30.000
Electrical Life at In
1.500
Standard connection terminals
50 mm²
Torque
2,5 Nm

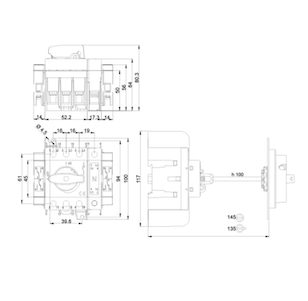

Width
69,5 mm
Height
100 mm
Depth
80,3 mm
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
