Modular disconnectors SZD up to 200A
SEZIONATORE SCHALT SZD00 4P 63A
SZD00463
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Modular switch
Rated Current (A)
63 A
Number of Poles
3+N
Number of modules
3
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
800
Rated impulse Withstand Voltage Uimp (kV)
8
Rated Current in category AC-21A (A) at 400/500/690V
63/63/63
Rated current in category AC-22A (A) at 400/500/690V
63/63/40
Rated current in category AC-23A (A) at 400/500/690V
63/63/63
Rated power in AC23 (kW) at 415/500/690V
29/35/48
Rated closing/breaking current at 400V AC23 (A)
400/320
Short time current Icw x 1s (kA)
1,1
Rated fuse short circuit current (kA)
20 (fusibile gG 63A)
Power loss
2,4 W
Mechanical life
50.000 operations
Electrical Life at In
3.000
Standard connection terminals
25 mm²
Torque
2 Nm

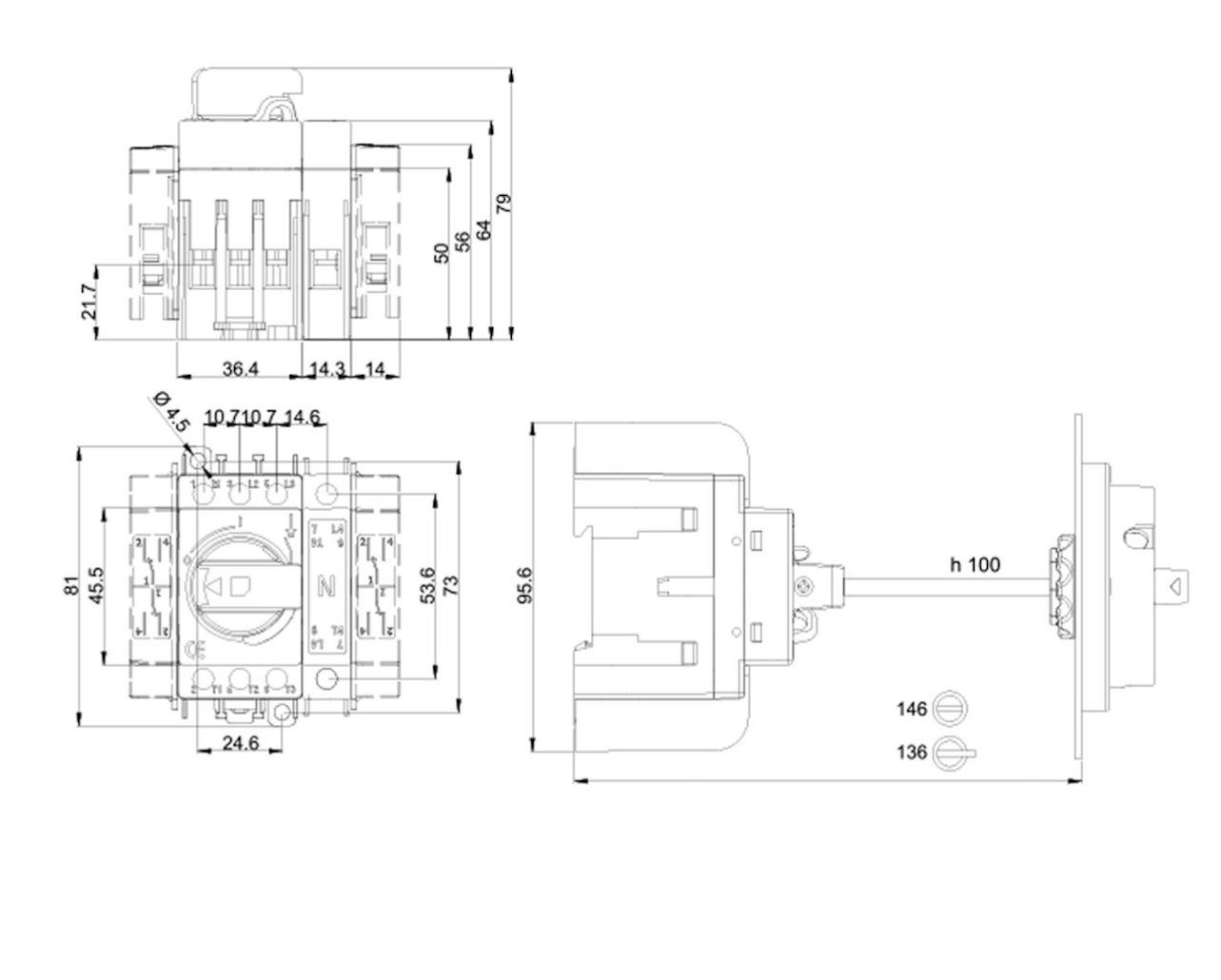

Width
50,7 mm
Height
81 mm
Depth
79 mm
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
