Modular disconnectors SZD up to 200A
SEZIONATORE SCHALT SZD00 3P 40A
SZD00340
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
Modular switch
Rated Current (A)
40 A
Number of Poles
3
Number of modules
2
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
800
Rated impulse Withstand Voltage Uimp (kV)
8
Rated Current in category AC-21A (A) at 400/500/690V
40/40/40
Rated current in category AC-22A (A) at 400/500/690V
40/40/40
Rated current in category AC-23A (A) at 400/500/690V
40/40/40
Rated power in AC23 (kW) at 415/500/690V
18/22/31
Rated closing/breaking current at 400V AC23 (A)
400/320
Short time current Icw x 1s (kA)
1,1
Rated fuse short circuit current (kA)
50 (fusibile gG 40A)
Power loss
0,9 W
Mechanical life
50.000 operations
Electrical Life at In
3.000
Standard connection terminals
16 mm²
Torque
2 Nm

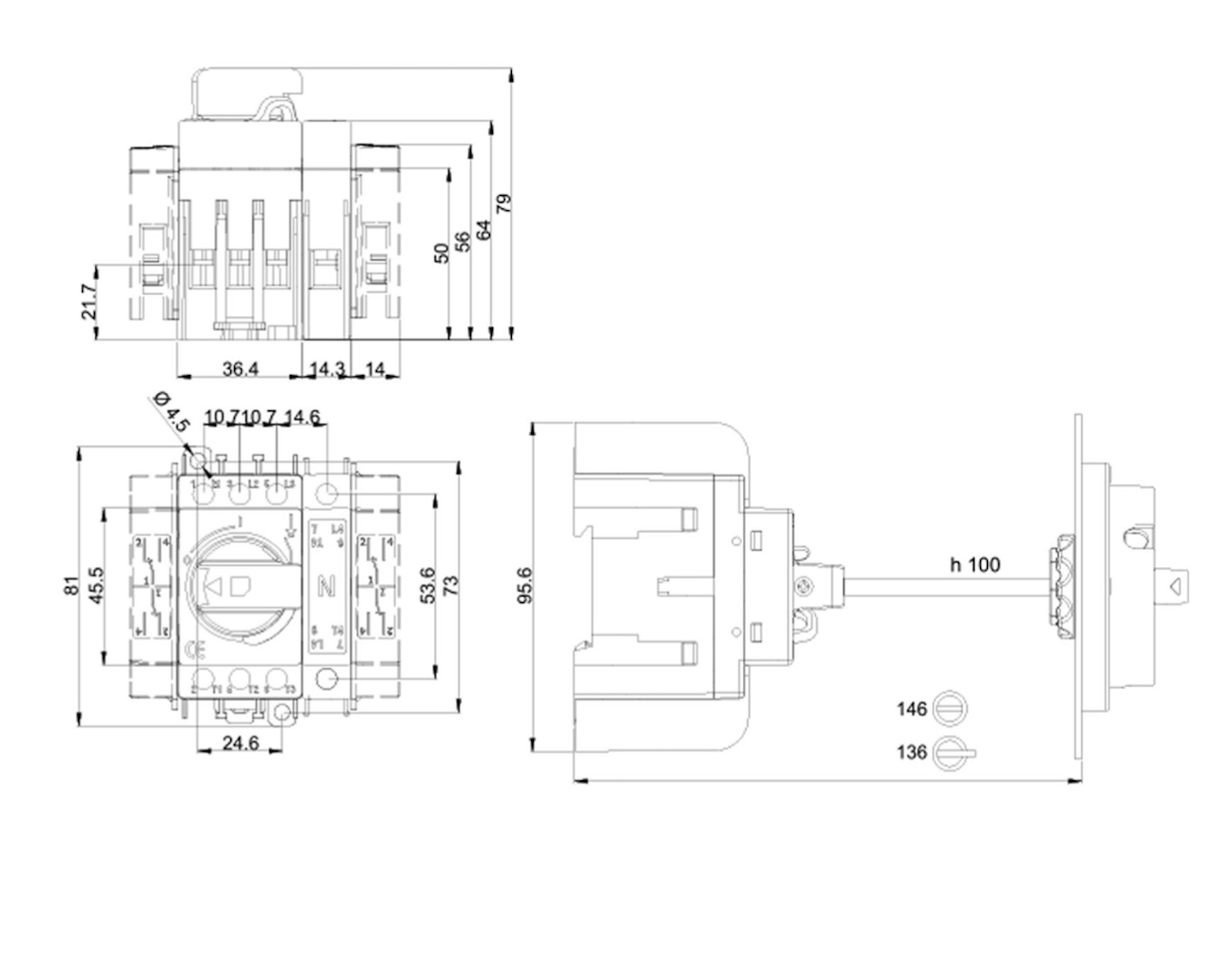

Width
36,4 mm
Height
81 mm
Depth
79 mm
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
