Motorised loadbreak disconnectors

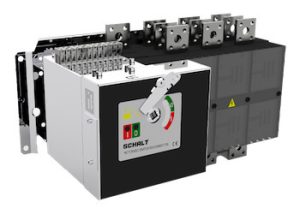

LOAD BREAK SWITCH HLN8S 4P 3150A 220VAC

HLN8SM43150

SEZIONATORE MOTORIZZATO HLN SCHALT, 3+N POLI, CORRENTE NOMINALE 3150A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 105kA, POTENZA DISSIPATA PER POLO 145,5W

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

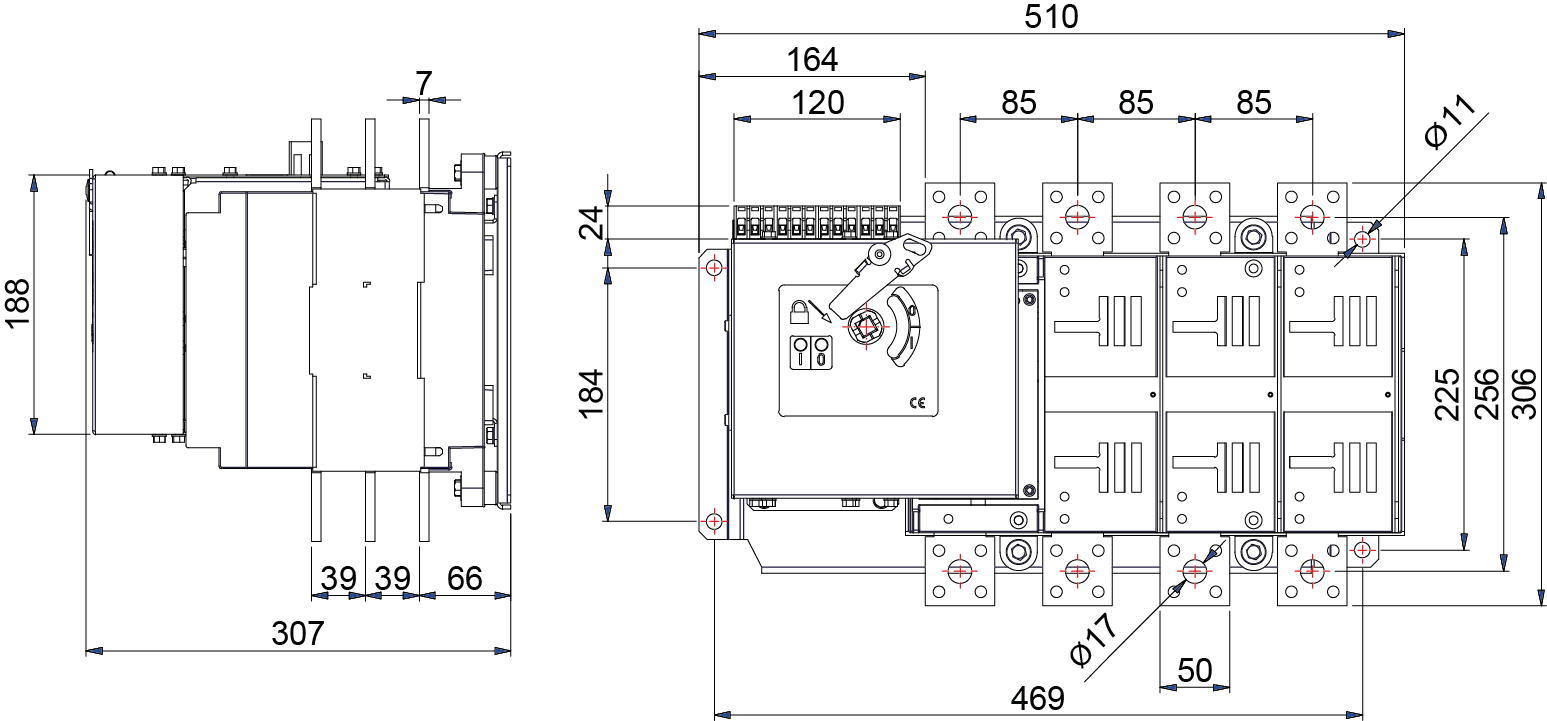

Click here for download: Dimensioned drawing

Technical Specifications

Rated Current (A)

3150 A

Number of Poles

3+N

Rated Operational Voltage Ue (V)

690 AC

Rated insulation voltage Ui (V)

1500

Rated impulse Withstand Voltage Uimp (kV)

12

Rated Current in category AC-21A (A) at 400/500/690V

3150/2500/1250

Rated current in category AC-22A (A) at 400/500/690V

-/-/-

Rated current in category AC-23A (A) at 400/500/690V

-/-/-

Rated closing/breaking current at 400V AC23 (A)

--

Short time current Icw x 1s (kA)

50

Short time current Icw x 0,25s (kA)

100

Rated fuse short circuit current (kA)

--

Short circuit making current capacity Icm

105 kA

Power Loss for each pole (W)

145,5

Mechanical life

2500 operations

Electrical Life at In

500 operations

Standard connection terminals

-- mm²

Weight

-

Standard

EN 60947-1; EN 60947-3

Approvals

CE

State

On sale

Brand

SCHALT
