Motorised loadbreak disconnectors

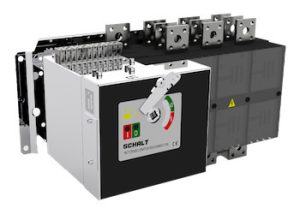

LOAD BREAK SWITCH HLN8S 3P 2500A 220VAC
HLN8SM32500
SEZIONATORE MOTORIZZATO HLN SCHALT, 3 POLI, CORRENTE NOMINALE 2500A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 105kA, POTENZA DISSIPATA PER POLO 91,7W
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
2500 A
Number of Poles
3
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
2500/2000/1250
Rated current in category AC-22A (A) at 400/500/690V
-/-/-
Rated current in category AC-23A (A) at 400/500/690V
-/-/-
Rated closing/breaking current at 400V AC23 (A)
--
Short time current Icw x 1s (kA)
50
Short time current Icw x 0,25s (kA)
100
Rated fuse short circuit current (kA)
--
Short circuit making current capacity Icm
105 kA
Power Loss for each pole (W)
91,7
Mechanical life
2000 operations
Electrical Life at In
500 operations
Standard connection terminals
-- mm²
Weight
-
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
