Motorised loadbreak disconnectors

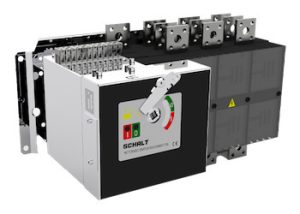

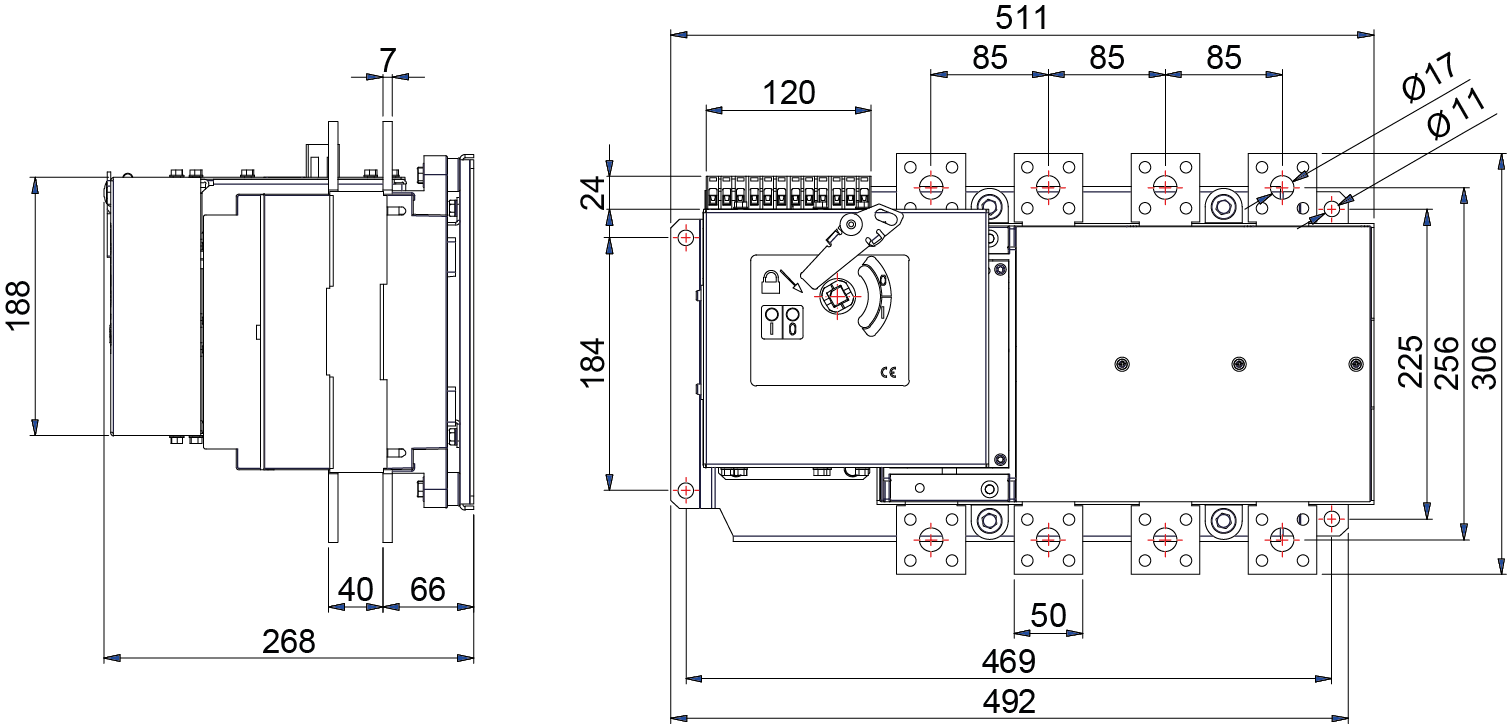

LOAD BREAK SWITCH HLN7S 4P 1600A 220VAC
HLN7SM41600
SEZIONATORE MOTORIZZATO HLN SCHALT, CORRENTE NOMINALE 1600A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 105kA, POTENZA DISSIPATA PER POLO 38,3W
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
1600 A
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
1600/1600/1250
Rated current in category AC-22A (A) at 400/500/690V
1250/-/-
Rated current in category AC-23A (A) at 400/500/690V
-/-/-
Rated closing/breaking current at 400V AC23 (A)
--
Short time current Icw x 1s (kA)
50
Short time current Icw x 0,25s (kA)
100
Rated fuse short circuit current (kA)
--
Short circuit making current capacity Icm
105 kA
Power Loss for each pole (W)
38,3
Mechanical life
4000 operations
Electrical Life at In
500 operations
Standard connection terminals
-- mm²
Weight
-
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
