Motorised loadbreak disconnectors

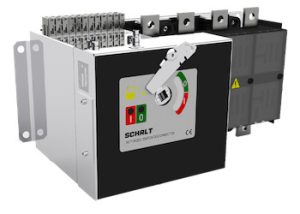

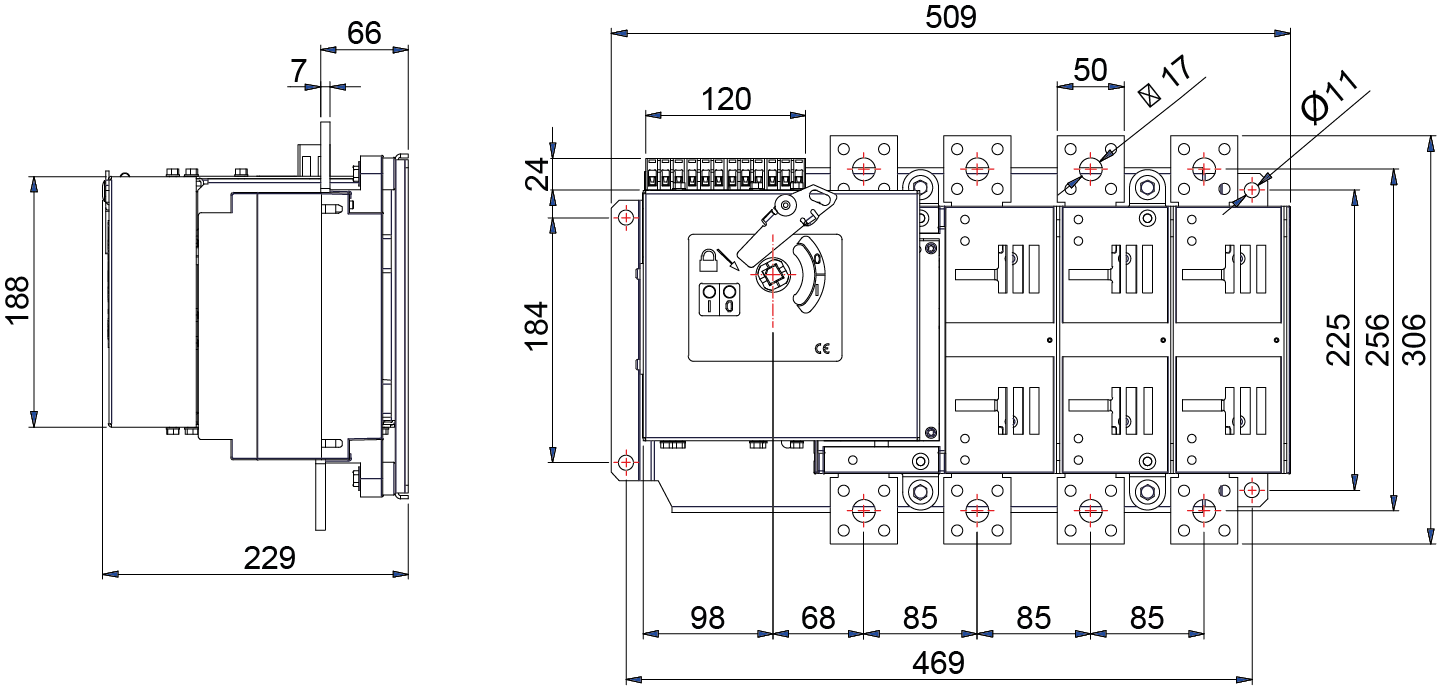

LOAD BREAK SWITCH HLN6S 4P 800A 220VAC/24VDC
HLN6SM4800
SEZIONATORE MOTORIZZATO HLN SCHALT, CORRENTE NOMINALE 800A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CORRENTE DI CORTOCIRCUITO CONDIZIONATA DA FUSIBILE 800A 100kA, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 73,5kA, POTENZA DISSIPATA PER POLO 17,5W, CAPACITA' DEI TERMINALI 2x240mm2
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
800 A
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
800/800/800
Rated current in category AC-22A (A) at 400/500/690V
800/800/800
Rated current in category AC-23A (A) at 400/500/690V
800/800/400
Rated closing/breaking current at 400V AC23 (A)
8000/6400
Short time current Icw x 1s (kA)
35
Short time current Icw x 0,25s (kA)
70
Rated fuse short circuit current (kA)
100 (fusibile 800A)
Short circuit making current capacity Icm
73,5 kA
Power Loss for each pole (W)
17,5
Mechanical life
7000 operations
Electrical Life at In
1.000 operations
Standard connection terminals
2x240 mm²
Weight
-
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
