Motorised loadbreak disconnectors

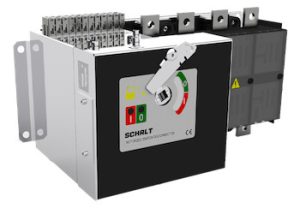

LOAD BREAK SWITCH HLN6S 4P 1250A 220VAC/24VDC

HLN6SM41250

SEZIONATORE MOTORIZZATO HLN SCHALT, CORRENTE NOMINALE 1250A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CORRENTE DI CORTOCIRCUITO CONDIZIONATA DA FUSIBILE 1250A 100kA, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 73,5kA, POTENZA DISSIPATA PER POLO 12,7W

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

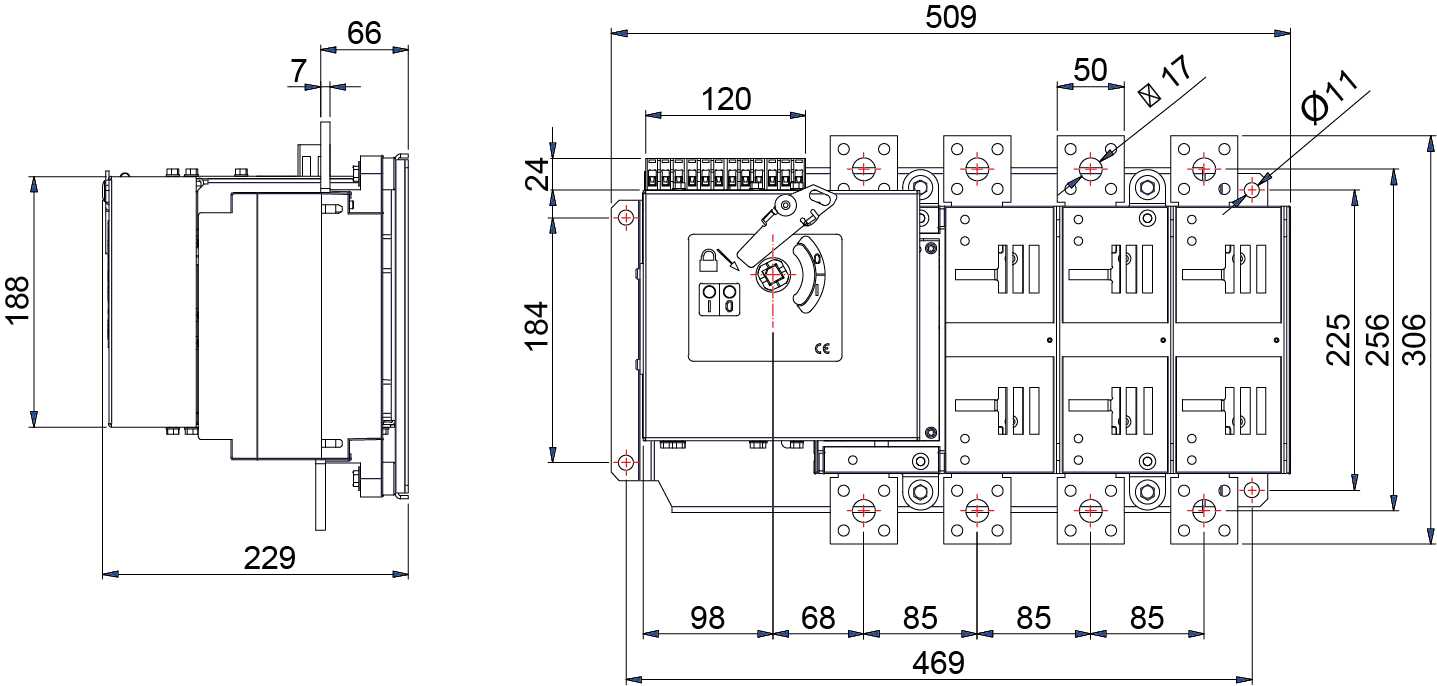

Click here for download: Dimensioned drawing

Technical Specifications

Rated Current (A)

1250 A

Rated Operational Voltage Ue (V)

690 AC

Rated insulation voltage Ui (V)

1500

Rated impulse Withstand Voltage Uimp (kV)

12

Rated Current in category AC-21A (A) at 400/500/690V

1250/1250/1250

Rated current in category AC-22A (A) at 400/500/690V

1250/1250/1250

Rated current in category AC-23A (A) at 400/500/690V

1250/800/400

Rated closing/breaking current at 400V AC23 (A)

12500/10000

Short time current Icw x 1s (kA)

35

Short time current Icw x 0,25s (kA)

70

Rated fuse short circuit current (kA)

100 (fuse 1250A)

Short circuit making current capacity Icm

73,5 kA

Power Loss for each pole (W)

12,7

Mechanical life

7000 operations

Electrical Life at In

1.000 operations

Standard connection terminals

-- mm²

Weight

-

Standard

EN 60947-1; EN 60947-3

Approvals

CE

State

On sale

Brand

SCHALT
