Motorised loadbreak disconnectors
LOAD BREAK SWITCH HLN5S 4P 400A 220VAC

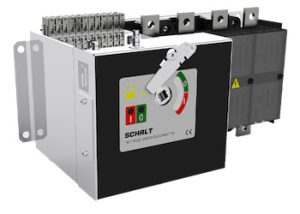

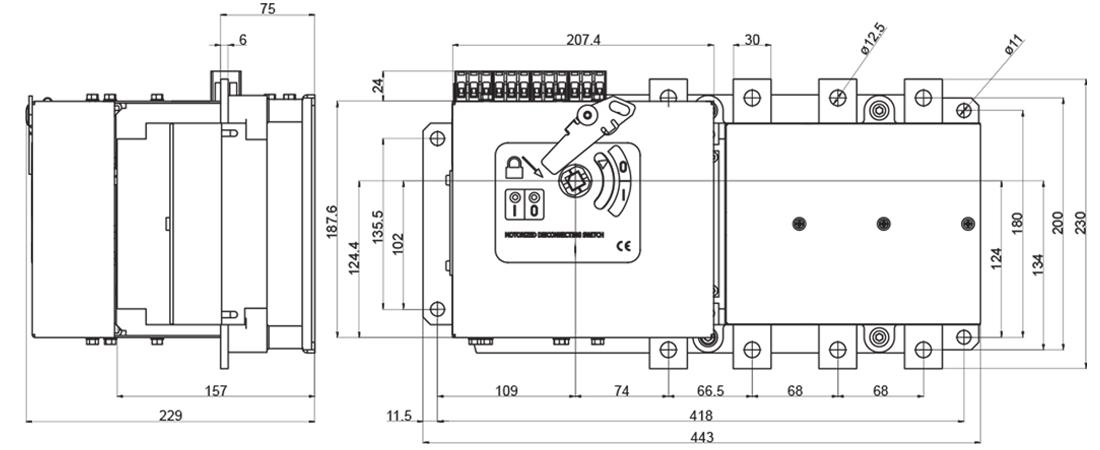

HLN5SM4630
SEZIONATORE MOTORIZZATO HLN SCHALT, 3+N POLI, CORRENTE NOMINALE 630A,TENSIONE NOMINALE DI IMPIEGO 690VAC, TENSIONE DI ISOLAMENTO 1500V, TENSIONE NOMINALE DI TENUTA AD IMPULSO 12kV, CORRENTE DI CORTOCIRCUITO CONDIZIONATA DA FUSIBILE 630A 50kA, CAPACITA' DI CHIUSURA IN CORTOCIRCUITO 30kA, POTENZA DISSIPATA PER POLO 15,6W, CAPACITA' DEI TERMINALI 2x185mm2
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
630 A
Number of Poles
3+N
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
630/630/630
Rated current in category AC-22A (A) at 400/500/690V
630/630/630
Rated current in category AC-23A (A) at 400/500/690V
630/630/630
Rated closing/breaking current at 400V AC23 (A)
6300/5040
Short time current Icw x 1s (kA)
26,5
Short time current Icw x 0,25s (kA)
53
Rated fuse short circuit current (kA)
50 (fuse 630A)
Short circuit making current capacity Icm
30 kA
Power Loss for each pole (W)
15,6
Mechanical life
8000 operations
Electrical Life at In
1500 operations
Standard connection terminals
2x185 mm²
Weight
-
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
